Machine details
|
High capacity
|

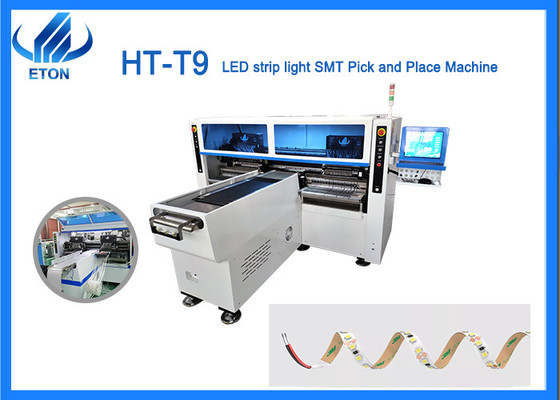

- High-speed magnetic linear motor pick and place machine in led light SMT production line

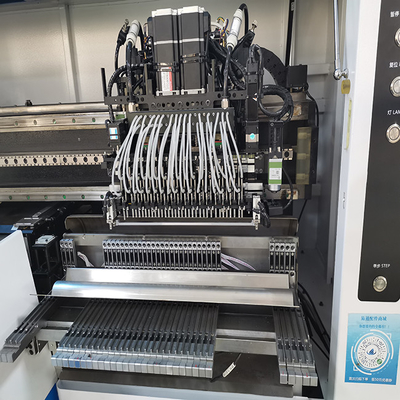

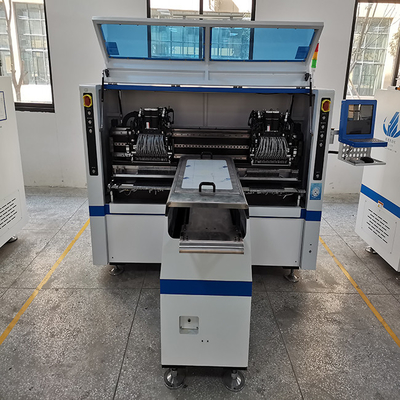

- Two mounting module,17 nozzles pasted on the PCB board at the same time,maximum mounting speed 250000 CPH
|
|
High precision
|
- Automatically fills components to missing coordinates
- MARK visual correction system
- Magnetic linear motor and servo motor,using Israeli technology,ensure the accuracy of X,Y and Z axis
|
|
Power functions
|
- Component:LED,capacitors,resistors,IC,shaped components,etc.
- Application:LED light,like flexible strip,tube,panel light.
|
|
Operation&maintenance
|
- Chinese and English graphical interface,easy to operate
- Free software upgrades for life,can be saved and edited files,arbitrary call
- Easy maintenance:easy maintenance,low cost of replacement parts,low maintenance cost.
|
Machine parameters
| length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| Mounting Mode |
Group picking and separately placing |
| Mounting Height |
≦5mm |
| Mounting Speed |
250000CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of head |
68 PCS |
| Feeding way |
Electric feeder with double motor |
Ship and package
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.
Company quality principle
1.Our company has more than 15 years development history.
2.Independent R&D Exclusive Patented technology.
3.85% large and listed LED factory in China are our client.
4.Top 1 in highspeed pick and place machine in China.
5.Overseas engineers and office in India, Egypt, Turkey
6. Door to door machine installation and training for free
25m flexible SMT automatic production line
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line. Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:
Application
SMT Machine mounter apply to led filed, highspeed mounter T9 suitable for any length led strip light. At present, LED soft Light strips are not only used in the field of interior decoration lighting, but also in urban lighting, landscape lighting, commercial lighting and a Some special lighting collars are only used in the field of interior decoration lighting, but also in urban lighting, landscape lighting, and commercial lighting. And some special lighting fields are very popular.
Our clients
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
Exhibition
Service
Maintenance period 1 year
One year warranty. during warranty. any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
