Machine details
|
High capacity
|

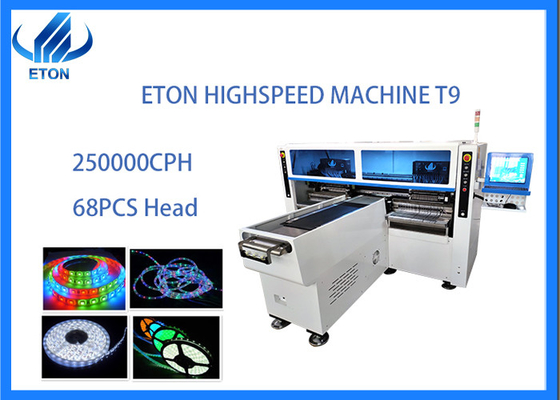

- High-speed magnetic linear motor pick and place machine in led light SMT production line
- Two mounting module,17 nozzles pasted on the PCB board at the same time,maximum mounting speed 250000 CPH
|
|
High precision
|
- Automatically fills components to missing coordinates
- MARK visual correction system
- Magnetic linear motor and servo motor,using Israeli technology,ensure the accuracy of X,Y and Z axis
|
|
Power functions
|
- Component:LED,capacitors,resistors,IC,shaped components,etc.
- Application:LED light,like flexible strip,tube,panel light.
|
|
Operation&maintenance
|
- Chinese and English graphical interface,easy to operate
- Free software upgrades for life,can be saved and edited files,arbitrary call
- Easy maintenance:easy maintenance,low cost of replacement parts,low maintenance cost.
|
Machine parameters
| length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| Mounting Mode |
Group picking and separately placing |
| Mounting Height |
≦5mm |
| Mounting Speed |
250000CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of head |
68 PCS |
| Feeding way |
Electric feeder with double motor |
Ship and package
Company quality principle
ETON company focus on building national brand and concentrate on providing customers professional guidance, good quality machines, good sale services of automatic SMT machines.
With the rapid development of the LED industry, ETON focuses on R&D and continuously enhances the competitiveness of its placement machines. Now we have successively reached strategic cooperation with many domestic and foreign companies. And has achieved everyone's unanimous recognition and praise. In the field of high-speed placement machines has become a leading Chinese brand.
We are high-tech enterprise, with CCC, SIRA, CE. and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2015 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” etc.
25m flexible SMT automatic production line
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line. Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:
Application
SMT Machine mounter apply to led filed, highspeed mounter T9 suitable for any length led strip light. At present, LED soft Light strips are not only used in the field of interior decoration lighting, but also in urban lighting, landscape lighting, commercial lighting and a Some special lighting collars are only used in the field of interior decoration lighting, but also in urban lighting, landscape lighting, and commercial lighting. And some special lighting fields are very popular.
Our clients
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
Exhibition
Service
1. Before order:
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
2. After order:
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
FAQ
1. How many machines sell in India ?
A: So far, we have hundreds machine sell in India.
2. I don’t know how to operate machine and will it required experience?
A: Our machine is very easy for operate, usually several days for training is enough and not required experience. ETON engineer will teach online now and will visit your factory after corona.
3.Do you have middle speed pick and place machine for led tube/street light/display, lens/panel/led bulb/dob/etc?
A: Yes! We have different module pick and place machine, for middle speed mounter, we have two kinds of machine, one is RT-1, it is 10 heads with 35000 cph, another is E8S with 45000 theoretical speed.
