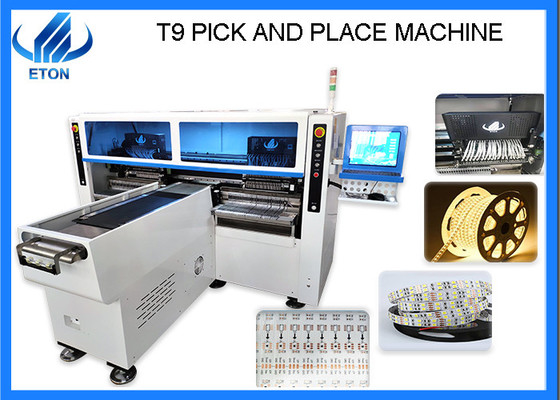

Machine details
|
High capacity
|
- High-speed magnetic linear motor pick and place machine in led light SMT production line
- Two mounting module,17 nozzles pasted on the PCB board at the same time,maximum mounting speed 250000 CPH
|
|
High precision
|
- Automatically fills components to missing coordinates
- MARK visual correction system
- Magnetic linear motor and servo motor,using Israeli technology,ensure the accuracy of X,Y and Z axis
|
|
Power functions
|
- Component:LED,capacitors,resistors,IC,shaped components,etc.
- Application:LED light,like flexible strip,tube,panel light.
|
|
Operation&maintenance
|
- Chinese and English graphical interface,easy to operate
- Free software upgrades for life,can be saved and edited files,arbitrary call
- Easy maintenance:easy maintenance,low cost of replacement parts,low maintenance cost.
|
Machine parameters
| length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| Mounting Mode |
Group picking and separately placing |
| Mounting Height |
≦5mm |
| Mounting Speed |
250000CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of head |
68 PCS |
| Feeding way |
Electric feeder with double motor |
Ship and package
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.
SMT whole line and machine
ETON is Top brand of pick and place machine in China. over 10 years LED lighting field, professional R&D team and after sales service team.
ETON supply whole SMT line machine, mainly included : Automatic stencil printer, Semi-automatic stencil printer, Conveyor, Pick and place machine, Reflow oven machine, Loader, Un-loader machine, PCB cleaning machine, stencil printing machine, etc.
Application Company Show
Efficient team: We provide the most systematic solution for you. The best suggestions of full SMT line equipment according to your budget and site.
Competitive price: We are directly manufacture of the ETON pick and place machine, so we can give you the best competitive price with high quality materials .
High quality: We have strictly quality control during all production from raw materials to the finished machine.
High efficiency : All machines parts are made by ourselves, so it's convenient to control the time schedule and quality timely.
Our Exhibition
ETON got more than 14 years R&D experience in SMT industry equipped with core technology
ETON Got large more than 80% big led lighting industry market, machine hot sell to more than 20 countries.
Our machines are exported to many overseas countries, we have participated in exhibitions in China, India, Turkey, Egypt, Pakistan, Tunisia, Vietnam, Thailand, Germany, Russia and other countries and regions, so that more overseas customers know us.
Our clients
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
Exhibition
FAQ
Do you have oversea after sale service?
We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.
Abroad, we have India office, Indian engineer, Jerusalem office, engineer, Egyptian engineer, etc.
How is the training?
After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will
train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make
it through, we also have special one-on-one online training and video
tutorials..
