Machine details

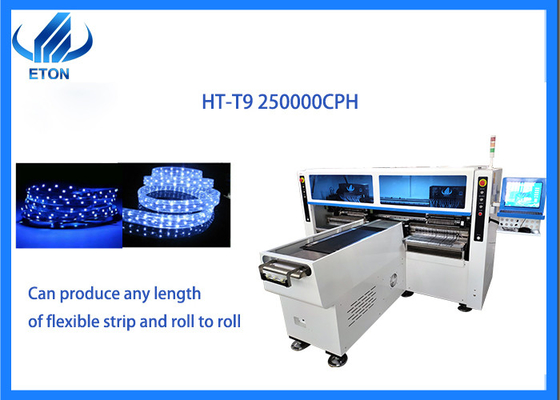

Dual arm magnetic linear motor LED highspeed pick and place machone, producing 4 types material at the same time,capacity reach 250000CPH.
Calibraton automatcally, high-precision, available for RGB
PCB clamping Adjustable pressure pneumatic
components: LED 3012/3020/3528/5050,resistor,capacitor,bridge rectifiers
Machine parameters
| length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| Mounting Mode |
Group picking and separately placing |
| Mounting Height |
≦5mm |
| Mounting Speed |
250000CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of head |
68 PCS |
| Feeding way |
Electric feeder with double motor |
Ship and package
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.
SMT whole line and machine
In 2007, We established the Taipei R&D Center and started the special chip mounter technology and patent research and development.
In 2008, Hong Kong Hong ETON Group Co., Ltd. was established. ETON has made great achievements in the field of LED and has been working hard.
In 2011, Shenzhen ETON Automation Equipment Co., Ltd was founded. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment.
Now, ETON has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
Our Exhibition
Our clients
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
Exhibition
FAQ
Do you have oversea after sale service?
We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.
Abroad, we have India office, Indian engineer, Jerusalem office, engineer, Egyptian engineer, etc.
Q: What is your actual speed of your products?
A: For the actual speed of the machine which is constrained by many factors,that relatedto the number of the components, the time to send PCB board and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
