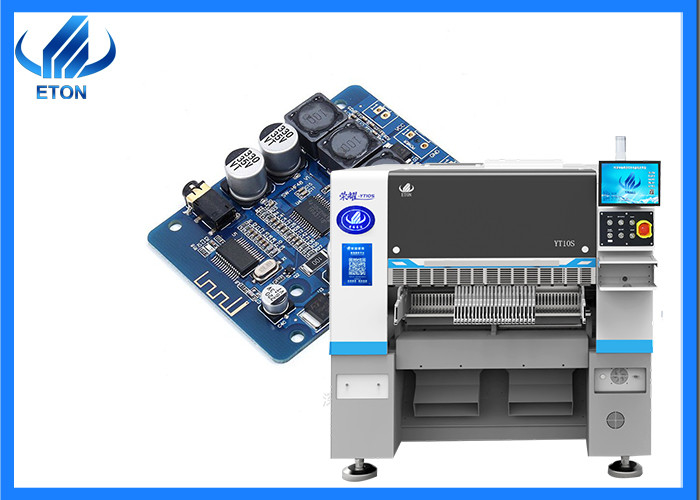

Technical Paremeter
| PCB Size |
500*450mm |
| heads |
10PCS |
| Feeder station |
52PCS |
| Components |
0201~15MM packaging material and IC material(Optional fixed camera for 0201~35*35MM), Other component size can be customized |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor |
| Mounting Speed |
48000 CPH(Under best condition) |
Full automatic SMT line Solution
In SMT Line, there are automatic stencil printer machine, pick and place machine, reflow oven machine, loader and un-loader machine. Different SMT line design will be little different. Some factory will using one automatic stencil printer machine for different SMT line. ETON will provide the professional suggestion for the line design.
Application
Company profile
Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
Eton mission: professional, excellent technology, sharing the results.
Eton goal: to create a national brand, build international Chinese enterprise.
Eton purpose: to create value for customers, creating benefits for society.
Our Services
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
Exhibition
In order to let customers in more countries see our machines.So many industry exhibitions have our presence. Next time, can you also visit our machines?
In many exhibitions, we have been affirmed and favored by customers, such as Thailand Exhibition, Turkey exhibition, India Mumbai and Delhi exhibition, Pakistan exhibition and so on
Reasons for poor gloss of solder joints in SMT chip processing
1. The tin powder in the solder paste has oxidation appearance.
2. The flux itself in the solder paste has additives that form a matting effect.
3. The preheating temperature of reflow soldering is low in SMD processing, and there are residues that are not easy to evaporate on the surface of the solder joints.
4. After soldering, there are rosin or resin residues on the appearance of the solder joints. This is a phenomenon that is often seen in actual operations, especially when using rosin-type solder paste. The spot is slightly bright, but the presence of its residue often affects this effect, especially in larger solder joints or IC feet; if it can be cleaned after soldering, the solder joint gloss should be improved.
5. Since there is no standard for the brightness of solder joints, if the products after soldering without silver solder paste are compared with those after soldering with silver solder paste, there will definitely be some distance, which requires customers to choose solder paste. should clarify their solder joint requirements to the supplier.
