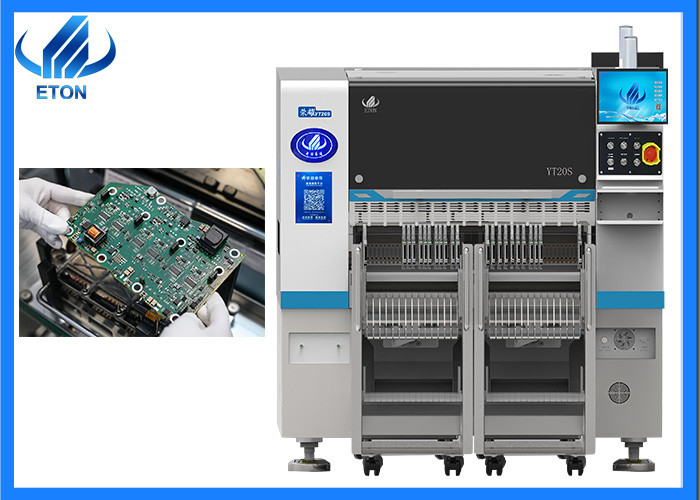

1.5KW power consumption optimal 98000CPH SMT pick and place machine
Machine main features
Integrated Placement Head
Lightweight, head is integrally formed, the 10 sets of Z axes are independently controlled by modular magnetic linear motor, which greatly improves the speed, accuracy and stability
Precision Corner System
The modular corner system independently controls the angle of each component to ensure high-precision placement. 10 suction nozzles per head, with a center distance of 16mm.

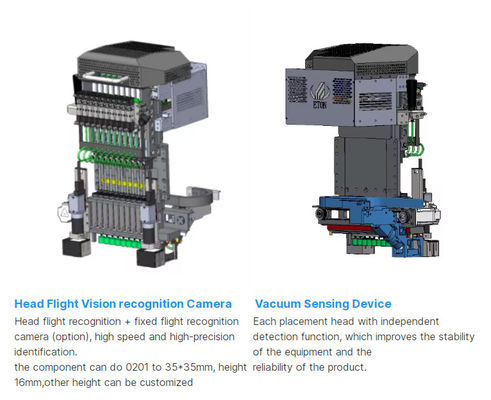

Vacuum Sensing Device
Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product.
Ultra-high-speed Capability
Adopting high-end magnetic linear motors and a multi-function Modular head, the placement capability has increased by 25% compared to traditional machines,with an optimum speed reaching 98000CPH
Machine main parameter
| Model |
YT20S |
| Dimension |
| Length |
1480mm |
| Width |
2680mm |
| Height |
1650mm |
| Total Weight |
2380kg |
| PCB |
| PCB Length Width |
Max:500*300mm(1200*450 option) Min:50*50mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Cylinder clamping, track width adjustable |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
LED monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
1 PCS (Head flight vision camera) |
| 2 PCS Mark camera |
| Mounting Precision |
CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height |
≦16mm (Other height can be customized) |
| Mounting Speed |
98000 CPH(Under best condition) |
| Components |
0201~12MM packaging material and IC material(Optional fixed camera for 0201~35*35MM),Other component size can be customized |
| Components Space |
0.2mm |
| No. of Feeders Station |
104 PCS |
| No. of nozzles |
20 PCS |
| Power |
220AC 50HZ |
| Power Consumption |
1.5kw |
| Operating Environment |
23℃±3℃ |
| Transmission Speed |
＞1000mm/sec |
| Transmission Direction |
Single(left→ right or right→ left) |
| Transmission Mode |
Online drive |
| Position Mode |
Optical |
| Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor |
| Feeding way |
Intelligent feeder with double motor |
| Production management MES system interface |
Customized |
