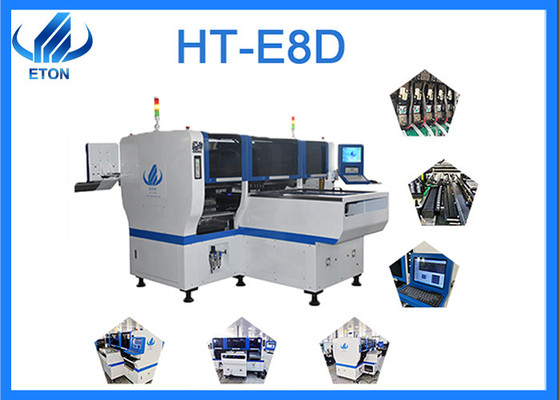

The newest high speed 24 heads smt pick and place machine
HT-E8D Technical Parameters:
| Birth place |
China |
| Model |
HT-E8D |
| Dimension |
3150*2900*1900mm |
| PCB |
Max:1200*300mm
Min:100*100mm |
| PCB thickness |
0.5-5mm |
| Mounting mode |
Group picking and separate placing
Separate picking and separate placing |
| Mounting precision |
+-0.04mm |
| Mounting height |
<15mm |
| Mounting speed |
8000CPH |
| Power consumption |
8KW |
| No of feeders station |
48 |
| No of nozzles |
24 |
| XYZ axis drive way |
High-end magnetic linear motor+servo motor |
Are you troubled by the efficiency of assembly of electronic product components?
Do you want to assemble an SMT line without clue?
Do you not know how to choose a pick and place machine?
Don't worry! Here you can find more and better!
HT-E8D Advantage:
It can produce 2 different products at the same time. Dual module Greatly to improve production efficiency.
Mounting various components: LED, capacitors, resistor, IC, shaped components,etc.
Ultra small components: Min. Size:0402, Max height:36mm
Application:power driver, electric board,lens,linear bulb, household appliance,etc.
HT-E8D Wide Application:
Suitable for various electronic products: televisions, computers, household appliances, LED lights, etc.
Used for mounting circuit boards of various electronic products, such as: power supply, driver, installation of LED bulbs, etc.
product details
Three major technological breakthroughs
1. Magnetic levitation motor, no friction, more flexible, more flexible head movement
2.24 heads, more heads, mount more components at one time
3. Flight recognition, mark correction, automatic compensation during placement, more accurate placement
Packaging and shipping
Double-layer vacuum wood packaging
By sea, air, land, a variety of transportation methods are available for your choice
service
1. Serve you sincerely 24 hours
2. There are offices in many countries in India, which can provide on-site technical services
3. Can provide complete SMT line machine and production line design services
4. Own industrial park, you can visit the factory to understand
Company strength
1. Certificate: CCC, CE, SIRA...
2. It has an independent R&D team and won a number of invention patents: 2015 Technology Innovation Award, the 4th LED China First Award...
3. The products are exported to more than 20 countries including India, Vietnam, and Turkey, and they have won the love of many customers
FAQ
1. How long can be shipped after the order ?
A: After the order is placed, we will immediately prepare the goods, generally can be shipped within 1 month, except for customized products
2. Do you provide after-sales technical services?
A: Yes, we do. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
3. Are you a trading company or a factory?
A: We have the factory and we are committed to the R & D, production, sales and after-sales technical services of SMT high-speed patch.
4. What is the payment method?
A: L/C or TT.
5. Do you have your own R&D team?
A: Yes, we can customize products as your requirements.
6.What is the power supply?
A: 380AC,50HZ.
