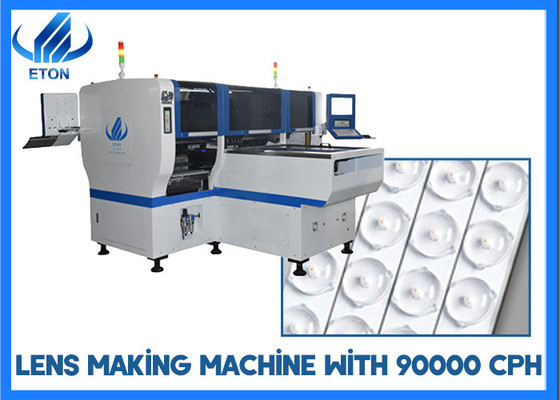

The newest high speed 24 heads smt pick and place machine
Why you need a multifunctional pick and place machine?
Comparison of multifunctional machine and high-speed machine: the multifunctional machine has high placement accuracy and can mount a variety of components; the high-speed machine can only put on a specific product, but the placement speed is high. In the SMT chip production plant, multifunctional chip mounter and high-speed chip mounter are used together.
What is the position in the SMT line ?
From the below picture, we can see that , the pick and place machine is in the middle of the line.
The important position it occupied is also the most critical part. Without it, the entire production line has no meaning.
So, it is vital to choose a good pick and place machine.
HT-E8D Technical Parameters
| Birth place |
China |
| Model |
HT-E8D |
| Dimension |
3150*2900*1900mm |
| PCB |
Max:1200*300mm
Min:100*100mm |
| PCB thickness |
0.5-5mm |
| Mounting mode |
Group picking and separate placing
Separate picking and separate placing |
| Mounting precision |
+-0.04mm |
| Mounting height |
<15mm |
| Mounting speed |
8000CPH |
| Power consumption |
8KW |
| No of feeders station |
48 |
| No of nozzles |
24 |
| XYZ axis drive way |
High-end magnetic linear motor+servo motor |
HT-E8D Wide Application
Suitable for various electronic products: televisions, computers, household appliances, LED lights, etc.
Used for mounting circuit boards of various electronic products, such as: power supply, driver, installation of LED bulbs, etc.
product details
Three major technological breakthroughs
1. Magnetic levitation motor, no friction, more flexible, more flexible head movement
2.24 heads, more heads, mount more components at one time
3. Flight recognition, mark correction, automatic compensation during placement, more accurate placement
Packaging and shipping
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
service
1. Before order
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
2. After order
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
Company strength
1.Our company has more than 15 years development history.
2.Independent R&D Exclusive Patented technology.
3.85% large and listed LED factory in China are our client.
4.Top 1 in highspeed pick and place machine in China.
5.Overseas engineers and office in India, Egypt, Turkey
6. Door to door machine installation and training for free
FAQ
Q: How is the Pick And Place Machine packaged?
A: The Pick And Place Machine is packaged in a wooden case.
Q: How long does it take to deliver the Pick And Place Machine?
A: It takes 30 days to deliver the Pick And Place Machine.
Q: What payment terms are available for the Pick And Place Machine?
A: The payment terms for the Pick And Place Machine are T/T, LC.
Q: How many Pick And Place Machines can be supplied per month?
A: A maximum of 50 Pick And Place Machines can be supplied per month.
