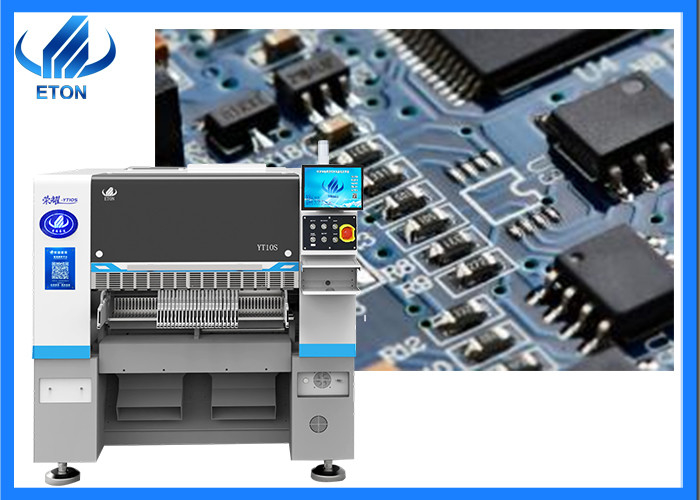

Introduction
1. Machine is intelligent. SMT Machine is very easy for operate. Equipped with good human interface
Workflow of SMT placement machine: board feeding and mark recognition-> automatic learning-> nozzle selection-> feeder selection-> component picking-> component inspection to evaluate-> placement-> nozzle return- > Out board
2. Machine is high speed. ETON high speed mounter machine one hour capacity could reach 4000 Meters
3. Machine is save labor. One smt line only take 1-3 labors.
Technical Paremeter
| PCB Size |
500*450mm |
| heads |
10PCS |
| Feeder station |
52PCS |
| Components |
0201~15MM packaging material and IC material(Optional fixed camera for 0201~35*35MM), Other component size can be customized |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor |
| Mounting Speed |
48000 CPH(Under best condition) |
Full automatic SMT line Solution
In SMT Line, there are automatic stencil printer machine, pick and place machine, reflow oven machine, loader and un-loader machine. Different SMT line design will be little different. Some factory will using one automatic stencil printer machine for different SMT line. ETON will provide the professional suggestion for the line design.
Application
ETON Profile
1.Our company has more than 15 years development history.
2.Independent R&D Exclusive Patented technology.
3.85% large and listed LED factory in China are our client.
4.Top 1 in highspeed pick and place machine in China.
5.Overseas engineers and office in India, Egypt, Turkey
6. Door to door machine installation and training for free
1. Before order
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
2. After order
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
FAQ
Q: How is the Pick And Place Machine packaged?
A: The Pick And Place Machine is packaged in a wooden case.
Q: How long does it take to deliver the Pick And Place Machine?
A: It takes 30 days to deliver the Pick And Place Machine.
Q: What payment terms are available for the Pick And Place Machine?
A: The payment terms for the Pick And Place Machine are T/T, LC.
Q: How many Pick And Place Machines can be supplied per month?
A: A maximum of 50 Pick And Place Machines can be supplied per month.
