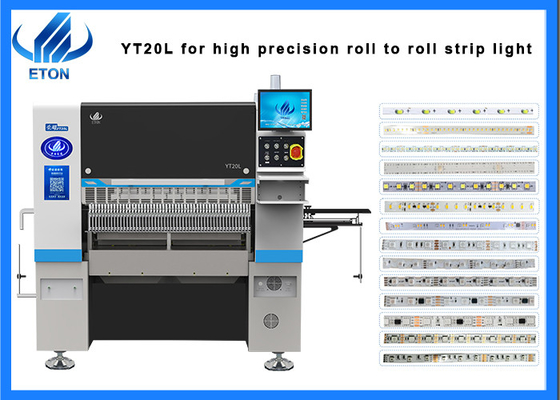

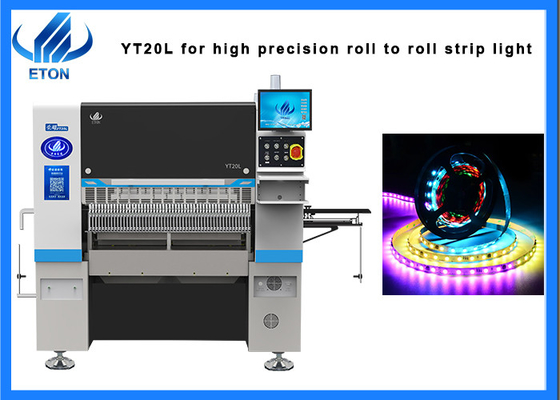

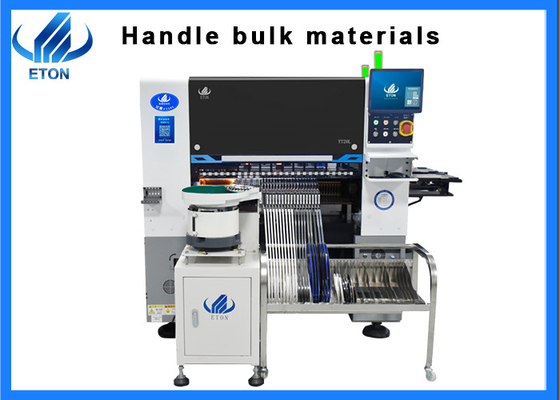

2024 New Model High-Speed SMT Placing Machine for 1515 1812 Flexible LED Strips
Machine main features
1.LED chip, chips components, IC, etc one time mounting;
2.Two lane, two gantry, can mount two different products at same time ;
3.Save much time for production changeover and sample proofing;
4.X,Y, and Z axis all adopt self-developed high-end magnetic linear motor;

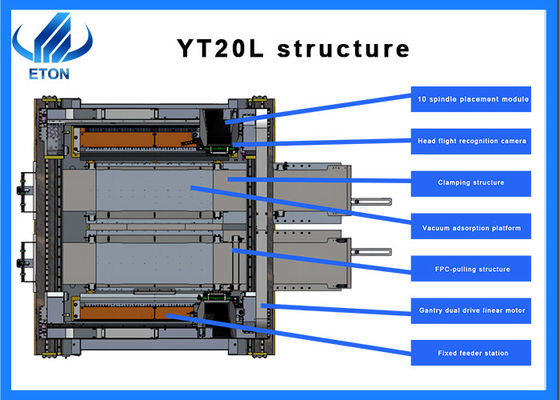

5.Y axis adopt double drive gantry structure
6.Apply to 0201mm~15*15mm tape reel package.
Machine main parameter
|
Model
|
YT20L
|
|
Dimension
|
2240mm*2070mm*1650mm
|
|
Total Weight
|
2200kg
|
|
PCB Length Width
|
250±10mm*any length(option)
|
|
PCB Thickness
|
0.1-0.5mm
|
|
PCB Clamping
|
Cylinder clamping, vacuum adsorption
|
|
Fixed rail
|
2 Rails, 2 gantries
|
|
System
|
Windows10
|
|
Software
|
R&D independently
|
|
Off-line programming
|
Available
|
|
Input Device
|
Keyboard, Mouse
|
|
No. of Camera
|
2 PCS (Head flight vision camera)
|
|
4 PCS Mark camera
|
|
Repeat Precision
|
CHIP±0.03mm IC±0.025mm Cpk ≧1.33 (3σ)
|
|
Mounting Height
|
Standard: ≦16mm Special setting:≦10mm
|
|
Mounting Speed
|
98000 CPH(Under best condition)
|
|
Components
|
0201~15*15MM packaging material
|
|
Components Space
|
0.2mm
|
|
No. of Feeders Station
|
Double side: 104 PCS (Single side:52PCS)
|
|
No. Of spindle
|
Double side: 20 PCS (Single side:10PCS)
|
|
Power
|
220AC 50HZ
|
|
Power Consumption
|
1.5kw
|
Machine application
SMT Line solution
Our Exhibitions
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
FAQ
Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
Q.Can I pay by L/C.
A.The procedure of L/C payment is complicated, which will waste a lot of time on payment. For more, you need to wait longer to get the machine, which will delay your production plan and delay the opportunity.
Q. How many products can your machine make per day?
A. The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
