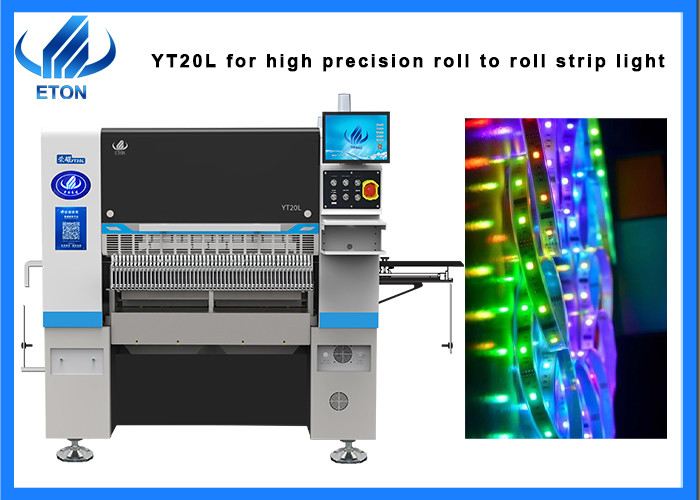

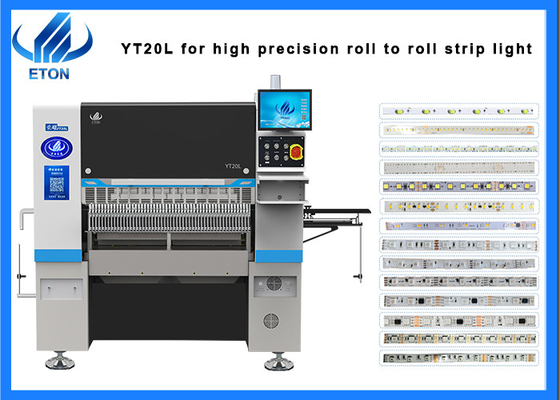

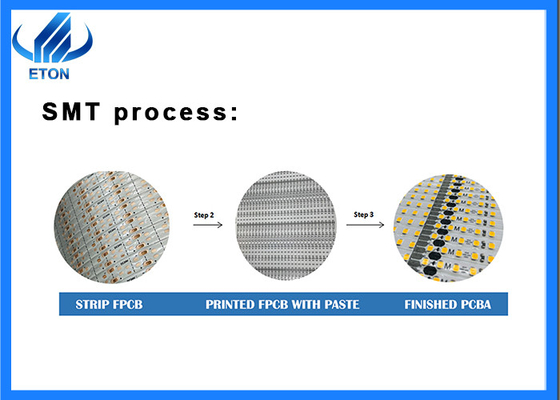

Precision SMT Machine for Soft LED Strip Assembly | 0201 Component Capable
Machine main features
1.LED chip, chips components, IC, etc one time mounting;
2.Two lane, two gantry, can mount two different products at same time ;
3.Save much time for production changeover and sample proofing;
4.X,Y, and Z axis all adopt self-developed high-end magnetic linear motor;
5.Y axis adopt double drive gantry structure
6.Apply to 0201mm~15*15mm tape reel package.
Machine main parameter
|
Model
|
YT20L
|
|
Dimension
|
2240mm*2070mm*1650mm
|
|
Total Weight
|
2200kg
|
|
PCB Length Width
|
250±10mm*any length(option)
|
|
PCB Thickness
|
0.1-0.5mm
|
|
PCB Clamping
|
Cylinder clamping, vacuum adsorption
|
|
Fixed rail
|
2 Rails, 2 gantries
|
|
System
|
Windows10
|
|
Software
|
R&D independently
|
|
Off-line programming
|
Available
|
|
Input Device
|
Keyboard, Mouse
|
|
No. of Camera
|
2 PCS (Head flight vision camera)
|
|
4 PCS Mark camera
|
|
Repeat Precision
|
CHIP±0.03mm IC±0.025mm Cpk ≧1.33 (3σ)
|
|
Mounting Height
|
Standard: ≦16mm Special setting:≦10mm
|
|
Mounting Speed
|
98000 CPH(Under best condition)
|
|
Components
|
0201~15*15MM packaging material
|
|
Components Space
|
0.2mm
|
|
No. of Feeders Station
|
Double side: 104 PCS (Single side:52PCS)
|
|
No. Of spindle
|
Double side: 20 PCS (Single side:10PCS)
|
|
Power
|
220AC 50HZ
|
|
Power Consumption
|
1.5kw
|

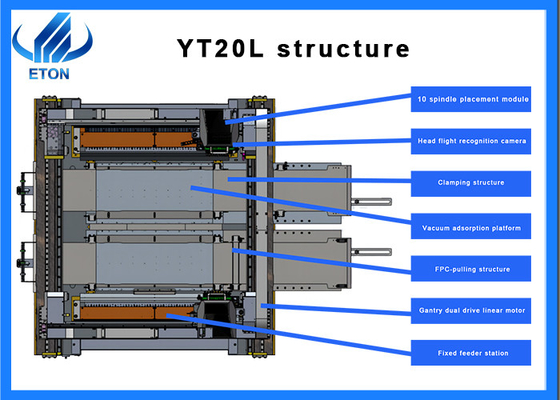

Machine main part
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
Q. What kind of machine you have?
A. We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors,
that related to the number of the components, the time to send PCB board
and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
