500×300mm PCB SMT Machine | 20 Heads, Flexible Wiring & Advanced Placement Modes

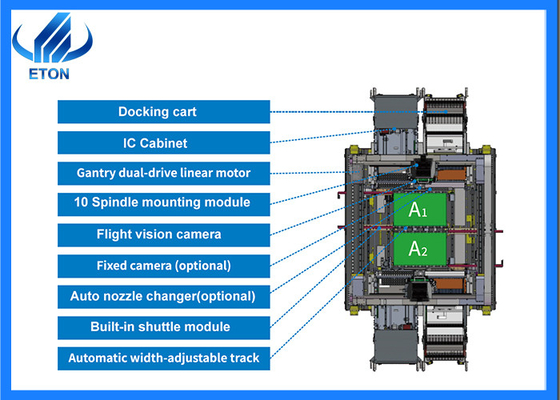

Machine main features
1.X,Y,and Z axis all adopt self-developed high-end magnetic linear motor;
2.Flexible PCB handling capabilities;
3.Y axis adopts double drive gantry structure;
4.Support automatic replacement nozzle function(option);
5.Apply to 0201~40*40mm tape reel package and IC tray feeder.
Machine main parameter
|
Model
|
YT20S-I
|
|
Dimension
|
1590mm*2680mm*1650mm
|
|
Total Weight
|
2200kg
|
|
PCB Length Width
|
Max:500*300mm Min:50*50mm
|
|
PCB Thickness
|
0.5-5mm
|
|
PCB Clamping
|
Cylinder clamping, track width adjustable
|
|
Mounting Mode
|
Group picking and separate placingseparate picking and separate placing
|
|
System
|
Windows10
|
|
Software
|
R&D independently
|
|
Display
|
LED monitor
|
|
Input Device
|
Keyboard, Mouse
|
|
No. of Camera
|
1 PCS (Head flight vision camera)
|
|
2 PCS Mark camera
|
|
Repeat Precision
|
CHIP±0.03mm IC/BGA±0.025mm Cpk ≧1.33 (3o)
|
|
Mounting Height
|
≦16mm (Other height can be customized)
|
|
Mounting Speed
|
98000 CPH(Under best condition)
|
|
Components
|
0201~15*15MM packaging material and IC material(Optional fixed camera for 0201~40*40MM),Other component size can be customized
|
|
Power
|
220AC 50HZ
|
Packages
Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
