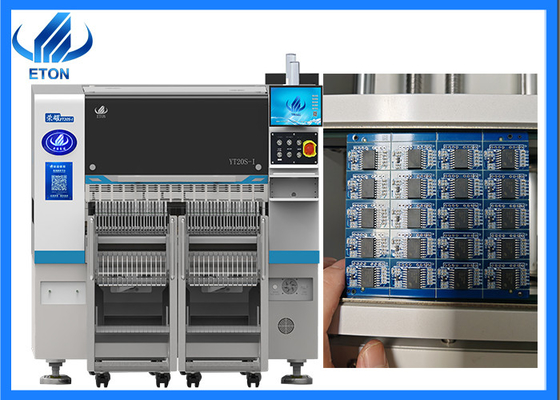

SMT Pick and Place Machine | Dual Gantry, 20 Spindles, ANC Support, and IC Tray Option
Machine main features
● Brand new self-developed high-precision placement head.
● Combining high-accuracy mark recognition camera with a fixed-flight vision camera to ensure placement accuracy.
● The placement head adopt independent vacuum detection,improve placement performance.
● Off-line programming,saves time during changeover cycles.
● The software includes Al Deep Learning and Automatic Optimization functions.
● Supports providing an MES system interface.
● Equipped with coordinate import function.
Machine main parameter
|
Model
|
YT20S-I
|
|
Dimension
|
1590mm*2680mm*1650mm
|
|
Total Weight
|
2200kg
|
|
PCB Length Width
|
Max:500*300mm Min:50*50mm
|
|
PCB Thickness
|
0.5-5mm
|
|
PCB Clamping
|
Cylinder clamping, track width adjustable
|
|
Mounting Mode
|
Group picking and separate placingseparate picking and separate placing
|
|
System
|
Windows10
|
|
Software
|
R&D independently
|
|
Display
|
LED monitor
|
|
Input Device
|
Keyboard, Mouse
|
|
No. of Camera
|
1 PCS (Head flight vision camera)
|
|
2 PCS Mark camera
|
|
Repeat Precision
|
CHIP±0.03mm IC/BGA±0.025mm Cpk ≧1.33 (3o)
|
|
Mounting Height
|
≦16mm (Other height can be customized)
|
|
Mounting Speed
|
98000 CPH(Under best condition)
|
|
Components
|
0201~15*15MM packaging material and IC material(Optional fixed camera for 0201~40*40MM),Other component size can be customized
|
|
Power
|
220AC 50HZ
|
Our Exhibitions
Our company has participated in various exhibitions in foreign countries, including India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Our advantage
l Focusing on SMT high speed pick and place machine more than 20 years
l The products exported to more than 40 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
l ETON obtained 14 invention patents, 135 practical patents, 49 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.

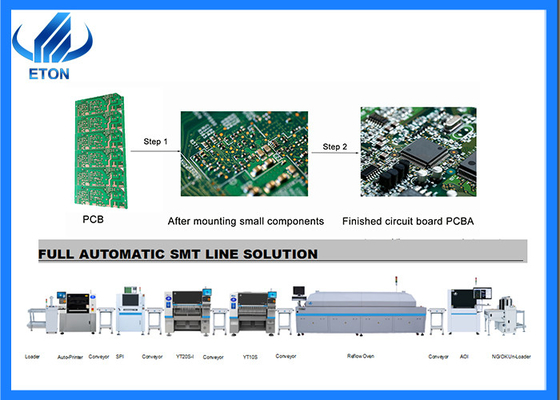

SMT Line solution
