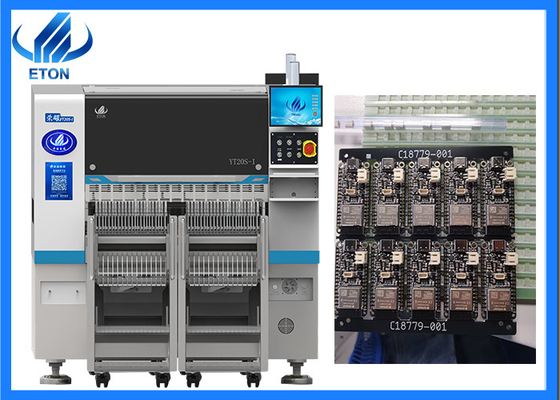

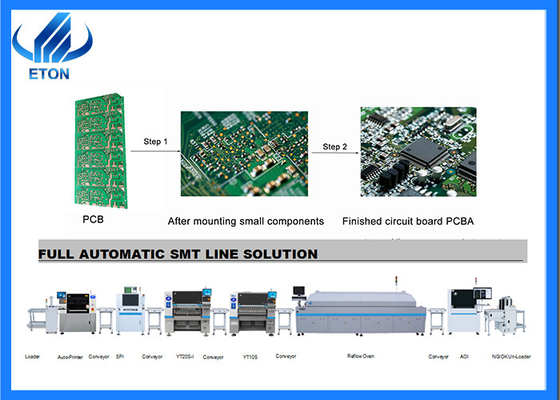

Precision SMT Machine | 20-Head Modular Placement with Free Software Upgrade & Flexible Production

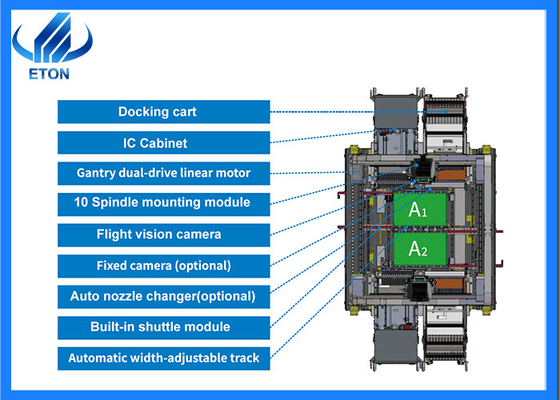

Machine main features
● Dual gantry, 20 spindles.
● Maximum PCB board: 500*300mm, minimum 50*50mm.
● Optional IC tray, ANC, flexible production
● Flexible wiring is achievable through modular placement Heads and various production modes.
Machine main parameter
|
Model
|
YT20S-I
|
|
Dimension
|
1590mm*2680mm*1650mm
|
|
Total Weight
|
2200kg
|
|
PCB Length Width
|
Max:500*300mm Min:50*50mm
|
|
PCB Thickness
|
0.5-5mm
|
|
PCB Clamping
|
Cylinder clamping, track width adjustable
|
|
Mounting Mode
|
Group picking and separate placingseparate picking and separate placing
|
|
System
|
Windows10
|
|
Software
|
R&D independently
|
|
Display
|
LED monitor
|
|
Input Device
|
Keyboard, Mouse
|
|
No. of Camera
|
1 PCS (Head flight vision camera)
|
|
2 PCS Mark camera
|
|
Repeat Precision
|
CHIP±0.03mm IC/BGA±0.025mm Cpk ≧1.33 (3o)
|
|
Mounting Height
|
≦16mm (Other height can be customized)
|
|
Mounting Speed
|
98000 CPH(Under best condition)
|
|
Components
|
0201~15*15MM packaging material and IC material(Optional fixed camera for 0201~40*40MM),Other component size can be customized
|
|
Power
|
220AC 50HZ
|
Certificates
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Shipping and Delivery
We usually transport the goods to the port in containers and then ship them to the destination. For the transportation of machines, land transportation and air transportation are also possible.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
1. What PCB sizes does this pick and place machine support?
This machine supports PCB sizes ranging from a maximum of 500×300mm to a minimum of 50×50mm, making it suitable for various production needs.
2. What are the main features of this SMT machine?
It features a Dual Gantry system, 20 spindles, and supports optional IC Tray and ANC system, enabling flexible production and multiple placement modes to meet different manufacturing requirements.
3. Does the machine support software upgrades? Are they free?
Yes, the machine supports free software upgrades, ensuring users receive the latest features and optimizations to enhance production efficiency.
4. How does this machine achieve flexible wiring and modular production?
With modular placement heads and various production modes, the machine allows users to adjust placement processes freely, optimizing production line layouts.
5. What types of components can this machine place?
The machine supports a wide range of components, including 0201, ICs, BGAs, QFPs, and more. With the optional IC Tray, it efficiently handles complex package components.
