Description of the product
Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group to pick and group to mount.
T9 is different from other high-speed machines. It is only for 250 * flexible strips of any length
Machine parameters
| length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| Mounting Mode |
Group picking and separately placing |
| Mounting Height |
≦5mm |
| Mounting Speed |
250000CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of head |
68 PCS |
| Feeding way |
Electric feeder with double motor
|
Applcation

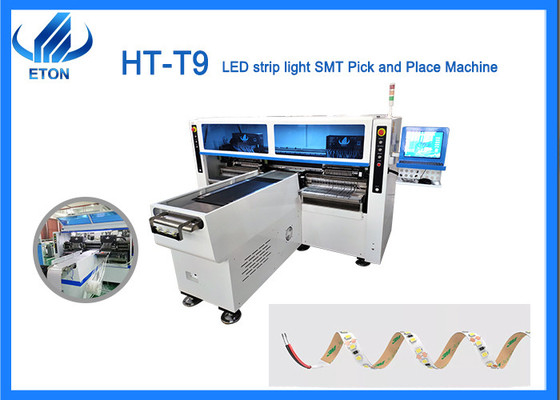

HT-T9 is a ultra high speed machine for strip light.
Mounting speed touch 250000CPH
Ultra-high placement efficiency and placement accuracy
Worried about not being able to complete your order in time?
If you have this HT-T9 ,don't worry about capacity.
Our advantage
As a technology-driven enterprise, ETON specializes in SMT (Surface Mount Technology), new energy FPC (Flexible Printed Circuit), semiconductor IGBT, as well as aerospace and military industries. Committed to technological innovation and product development in the field of pick-and-place machines, the company adheres to the core philosophy of promoting the nation through hard work. It continuously enhances the technological content and competitiveness of its products, establishing a comprehensive system for technological innovation. ETON has been granted over 200 patents, including over 20 invention patents, more than 40 software copyrights, and several patents for international pioneering technologies.
Oversea market:The products exported to more than 40 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
Packing and payment
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery
All machines are packed with vacuum and wooden packing
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Software lifetime upgrade
24 hours to deal with problems online
Engineers can arrive on site to teach operation and debug the machine
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
