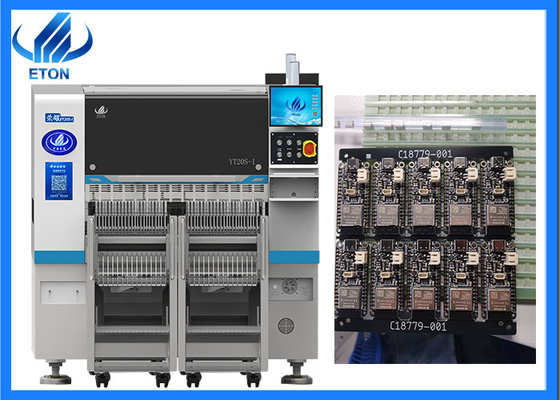

High-Speed SMT Pick and Place Machine | 20 Spindles, Dual Gantry, Modular & IC Tray Compatible
Description
● Dual gantry, 20 spindles.
● Maximum PCB board: 500*300mm, minimum 50*50mm.
● Optional IC tray, ANC, flexible production
● Flexible wiring is achievable through modular placement
Heads and various production modes.
Machine main parameter
|
Model
|
YT20S-I
|
|
Dimension
|
1590mm*2680mm*1650mm
|
|
Total Weight
|
2200kg
|
|
PCB Length Width
|
Max:500*300mm Min:50*50mm
|
|
PCB Thickness
|
0.5-5mm
|
|
PCB Clamping
|
Cylinder clamping, track width adjustable
|
|
Mounting Mode
|
Group picking and separate placingseparate picking and separate placing
|
|
System
|
Windows10
|
|
Software
|
R&D independently
|
|
Display
|
LED monitor
|
|
Input Device
|
Keyboard, Mouse
|
|
No. of Camera
|
1 PCS (Head flight vision camera)
|
|
2 PCS Mark camera
|
|
Repeat Precision
|
CHIP±0.03mm IC/BGA±0.025mm Cpk ≧1.33 (3o)
|
|
Mounting Height
|
≦16mm (Other height can be customized)
|
|
Mounting Speed
|
98000 CPH(Under best condition)
|
|
Components
|
0201~15*15MM packaging material and IC material(Optional fixed camera for 0201~40*40MM),Other component size can be customized
|
|
Power
|
220AC 50HZ
|

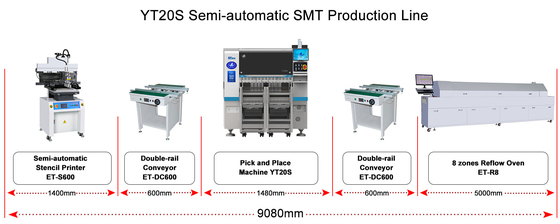

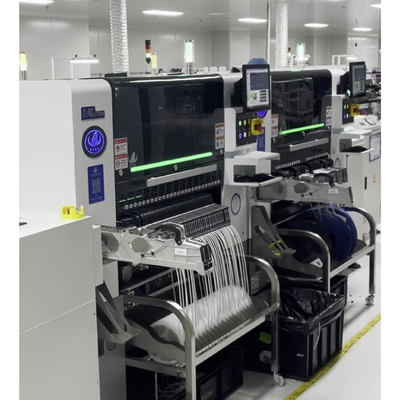

Machine application
Our Exhibitions
As an experienced company of trading SMT pick and place machine with more than 30 countries and regions aboard, Eton has participated in many exhibitions of foreign countries, such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc. And also we have took part in our domestic exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, et
About us
Company quality principle
Company five level management policy:sincere business,focus on R&D,manufacturing intentions,considerate service,customer trust
ETON mission:professional,excellent technology,sharing the results
ETON goal:to create a national brand,build international Chinese enterprises
ETON’s purpose:to create value for customers,creating benefits for society
ETON vision:determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
Our advantage
As a technology-driven enterprise, ETON specializes in SMT (Surface Mount Technology), new energy FPC (Flexible Printed Circuit), semiconductor IGBT, as well as aerospace and military industries. Committed to technological innovation and product development in the field of pick-and-place machines, the company adheres to the core philosophy of promoting the nation through hard work. It continuously enhances the technological content and competitiveness of its products, establishing a comprehensive system for technological innovation. ETON has been granted over 200 patents, including over 20 invention patents, more than 40 software copyrights, and several patents for international pioneering technologies.
Packing
Service
Professional solutions: Provide professional SMT Full line solutions
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
