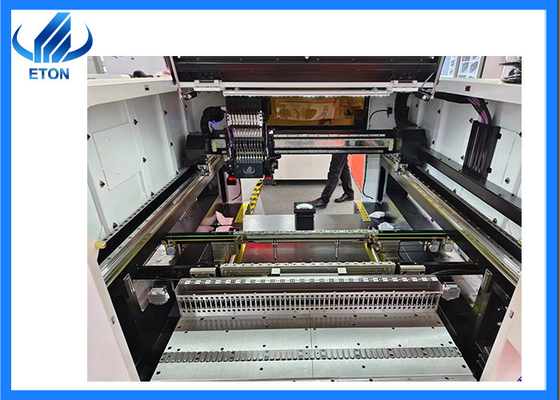

10 Spindle Automated SMT Equipment for High Accuracy Power Board and Solar PCB Mounting

Large Image : 10 Spindle Automated SMT Equipment for High Accuracy Power Board and Solar PCB Mounting

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE,CCC, SIRA
Model Number:	YT20S-II
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	WOODEN BOXES
Delivery Time:	30 WORKING DAYS
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Highlight:

10 Spindle SMT Equipment

High Accuracy SMT Equipment

Solar PCB Mounting SMT Equipment

YT10S Pick And Place Machine

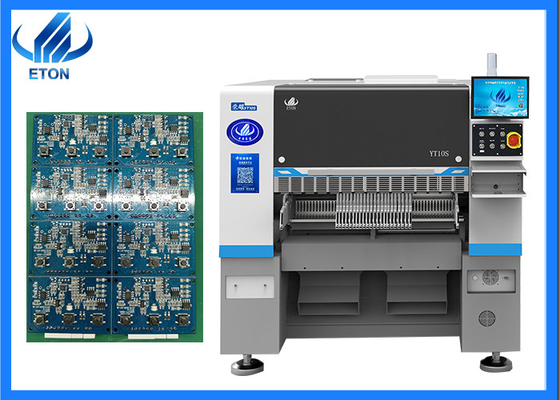

High-speed multi-integrated machine,breaking through industry conventions, greatly improving mounting speed, accuracy and stability.

Feature

1.X,Y,and Z axis all adopt self-developed high-end magnetic linear motor
2.Flexible PCB handling capabilities, multi-station,multi-material mounting
3.Y axis adopts double drive gantry structure
4.Support automatic replacement nozzle function(option)
5.Apply to 0201~35*35mm tape reel package and IC tray feede

Specification

Model	YT10S
Dimension	1480mm2020mm1650mm
Total Weight	2380kg
PCB Length Width	Max:500450mm(1200450 option) Min:50*50mm
PCB Thickness	0.5-5mm
PCB Clamping	Cylinder clamping, track width adjustable
Mounting Mode	Group picking and separate placingseparate picking and separate placing
System	Windows7
Software	R&D independently
Display	LED monitor
No. of Camera	1 PCS (Head flight vision camera)2 PCS Mark camera
Mounting Precision	CHIP±0.03mm QFP±0.025mm Cpk 1.0 (3σ)
Components	0201~15MM packaging material and IC material(Optional fixed camera for 0201~35*35MM), Other component size can be customized
Mounting Speed	48000 CPH(Under best condition)
Mounting Height	16mm(Other height can be customized)
No. of Feeders Station	52 PCS (104 PCS option)
No. of nozzles	10 PCS
Power	220AC 50HZ

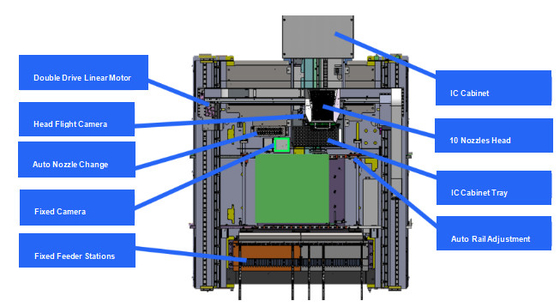

Integrated Placement Head

Lightweight, head is integrally formed, the 10 sets of Z axes are independently controlled by modular magnetic linear motor, which greatly improves the speed, accuracy and stability

Vacuum Sensing Device

Each placement head with independent detection function, which improves the stability of the equipment and the
reliability of the product.

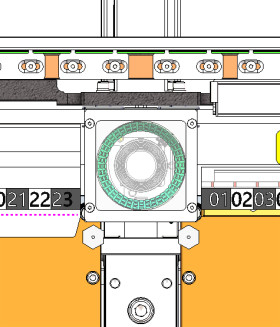

Precision Corner System

The modular corner system independently controls the angle of each component to ensure high-precision placement. 10 suction nozzles per head, with a center distance of 16mm.

Ultra-high-speed Capability

Adopting high-end magnetic linear motors and a multi-function Modular head, the placement capability has increased by 25% compared
to traditional machines,with an optimum speed reaching 48000CPH

Package

Step 1: Wrap with stretch film to prevent the equipment from dust and water.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.

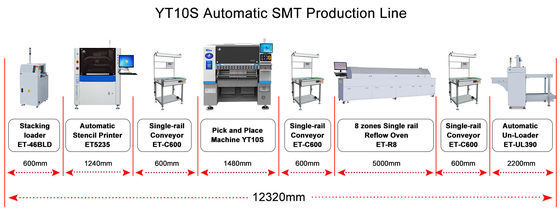

Market

ETON market share

Our products have been successfully exported to over 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, and more. Among our esteemed clients are prominent names like SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK, KENDAL, RangDong, and UNISTAR.

Company profile

ETON have more than 20 years R&D experiences, which boasts an impressive track record with 14 invention patents, 135 practical patents, and 55 software copyrights. Holding more than 300 workers and 52000 square meters Jiangxi industrial park. Pioneers in the Chinese SMT machine field, we bring over 11 years of experience and hold CCC, SIRA, and CE certificates.Our global presence spans South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, and beyond. ETON provides comprehensive SMT line solutions, including pick and place machines, reflow ovens, stencil printers, PCB conveyors, SPI, AOI, and more. ETON is a top brand in China's SMT machine manufacturing.
ETON takes pride in offering overseas engineers for free installation and training. Choose ETON as your reliable and experienced partner in the SMT industry.

FAQ

Q. How is the differences of your multifunctional machine and high-speed machine?
A. The mounting mode of multifunctional and high speed machine which decides the range of their mounting products, and the mounting capacity is to distinguish this two types of the machine, such as multifunctional pick and place machine KT10S with capacity of 48000 CPH, while high speed mounter machine T9-2S with 500000 CPH capacity.

Q.How can I make inspection when something wrong with the machine?
A. Well, the inspection is taken by our professional engineer to check and modulate the machine, if you counter any problem of our machine please contact us, and we will arrange our engineer to solve it.

Q. How long is the machine maintenance period, whether it is free?
A. The maintenance period of our machine is 1 year and its free for our clients, after the maintenance period we will arrange our engineers to check and test the machine one or two times a year freely.
