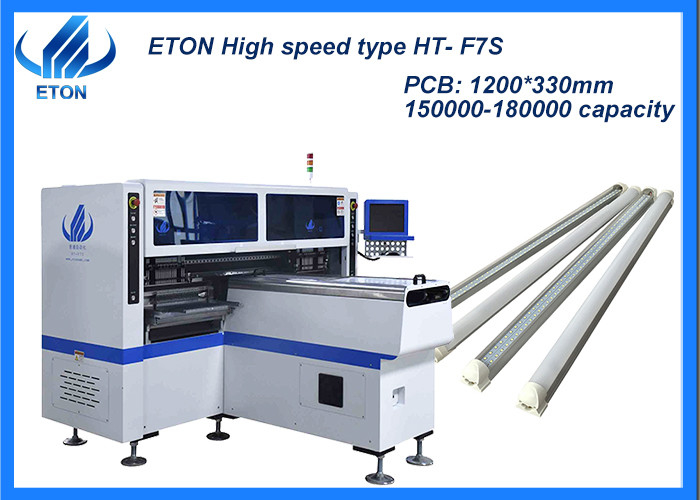

F7S Mounter main technology parameters
1. Module: HT-F7S
2. Machine functions: Picking components and then mounting on the PCB
3. Mounting mode: Group picking and group mounting, feeding missing components automatically
4. PCB Clamping: Adjustable pressure pneumatic
5. System: Windows 7
6. Display: Touch screen monitor
7. No. of camera : 5 pcs digital camera, vision alignment, mark correction
8. Mounting speed: 150000-170000 chip per hour
9. Power consumption: 5 kw
10. X,Y, Z Axis Drive way: High-end magnetic linear motor+ servo motor
Specification
| Model: |
HT-F7S |
| PCB Length Width: |
Max:1200*330 mm
Min:100*100 mm
|
| Mounting speed: |
150000-180000 chip per hour |
| No. of Feeder station: |
68 PCS |
| Power |
380 AC 50HZ |
| Dimension: |
2700*2300*1550 mm |
| PCB Clamping: |
Adjustable pressure pneumatic |
| Components: |
SMD LED 3014/3020/3528/5050/5735/5630 and resistor, capacitor, bridge rectifiers, etc |
| No. of Nozzles: |
34 PCS |
| Feeding way |
Electric feeder with double motor |
Applition Products
Company profile
(1)Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.
(2)ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
(3)The produces have exported more than 20 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
(4)ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Ship and package
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.
Service
Professional solutions: Provide professional SMT Full line solutions
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
