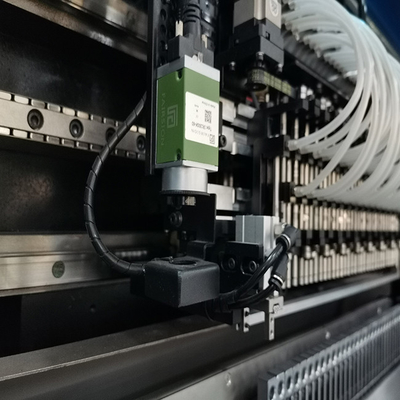

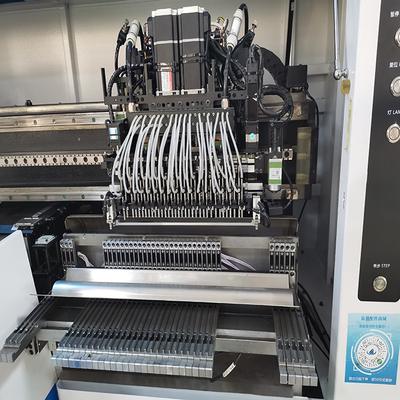

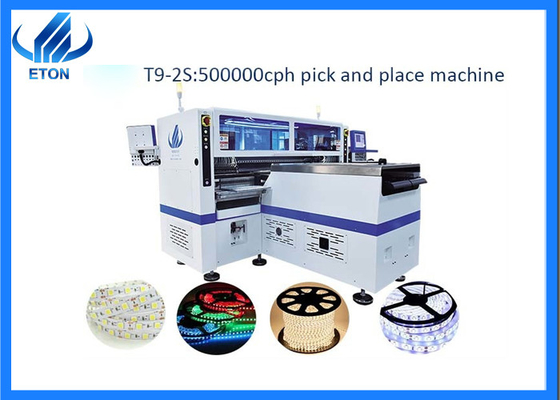

LED Chip strip lamp machine
LED chip like 2835 chip/3030 chip/5050 chip/rgb chip etc. These smd led components are mounted by the mounter machine with high speed and high precision automatic robot machine, it is more intelligent controlled with industrial computer and software, working after programming.
For led strip lamp, there are mainly two different components, one is the led chip, other is the resistor. Both of them are using mounter machine, also with some more intelligent strip light, like some design with the Big RGB multi-color chip, and the IC driver control also are no problem mounting by same machine.
For different strip light mounter machine, we could recommend the right smt production line and the test line, splitting line and the extrusion line according to your product.
Machine parameters
| length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| Mounting Mode |
Group picking and separately placing |
| Mounting Height |
≦5mm |
| Mounting Speed |
250000CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of head |
68 PCS |
| Feeding way |
Electric feeder with double motor |
Ship and package
All machines are packed with vacuum and wooden packing like the one in the pictures.
SMT whole line and machine
In 2007, We established the Taipei R&D Center and started the special chip mounter technology and patent research and development.
In 2008, Hong Kong Hong ETON Group Co., Ltd. was established. ETON has made great achievements in the field of LED and has been working hard.
In 2011, Shenzhen ETON Automation Equipment Co., Ltd was founded. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment.
Now, ETON has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
Our Exhibition
Our clients
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
Exhibition
FAQ
Q: Are you a trade company or a manufacturer?
A:We are an experienced manufacturer of SMT. Our company has been established for ten years, the company has more than 300 employees, the company is a large-scale, is the top domestic enterprises
Q: What's your operating system?
A: Our operating system is windows 7.
Q: If I have any questions that I don't understand, can I ask you at any time?
A: Yes. If you have any questions, please don't hesitate to ask me. We have local engineers and office in India and Egypt, can help u very convenient.
