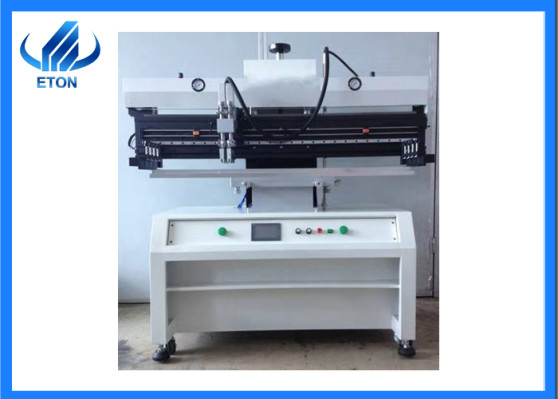

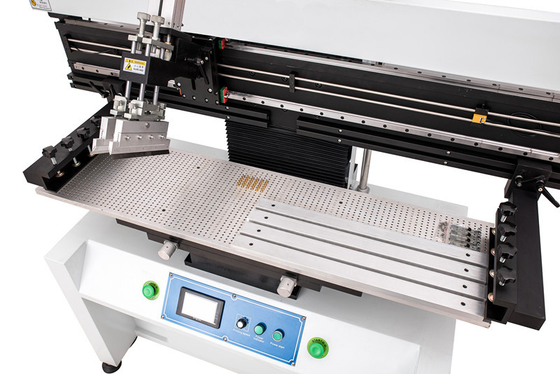

Product Details:
1. linear guide rail
2. Print Table
3. Print motor
4. transducer
5. Automatic lifting cylinder
6. Oil-water separator
7. Fix the foot spacing and move the land wheel
Specification:
|
Model
|
ET-S1500
|
|
Printing area:
|
1500×300 mm
|
|
Plate Area:
|
1550×320 mm
|
|
Stencil Frame Size:
|
470×370 mm～1300×550 mm (L×W)
|
|
Positioning way:
|
positioning pin
|
|
Scraper Speed:
|
0-100 mm/sec
|
|
Power:
|
220V single phase, 50/60 HZ
|
|
Power Consumption:
|
120 W
|
|
PCB plate thickness:
|
0.2-2.0 mm
|
|
Plate Trimming:
|
Front/back +/- 10mm Right/Left +/- 10mm
|
|
Printing Precision:
|
+/- 0.05 mm
|
|
Air supply:
|
5-7 KGF/cm2
|
|
Weight:
|
420 kg
|
|
Dimension:
|
(L)1600 x(W)900 x(H)1650 mm
|
Packing and shipping
Market
Our equipment is exported to more than 30 countries and regions, such as South Korea, Turkey, Egypt, India, Russia, the United States, Brazil, Tunisia, Poland, Lithuania, South Africa, Iran, Pakistan, Saudi Arabia, Uzbekistan, Nigeria, Germany, etc
FAQ
Q1: What is the failure rate of the machine?
A: Our machines are very stable with a failure rate of less than 0.001.
Q2: I have never used a chip mounter before, is it easy to operate?
A: The machine is easy to operate, and usually 3 to 5 days of operation training is enough.
Q3: What is the minimum order quantity?
A: One machine. Mini orders are also welcome.
Q4: Is your software interface in English?
A: Both English and Chinese interfaces are available.
Q5: What are the terms of payment? What about trade terms?
A: T/T is OK. You can choose FOB Shenzhen.
