OEM PCB Assembly Full Automatic Vision Stencil Printer with Advanced Technology

Large Image : OEM PCB Assembly Full Automatic Vision Stencil Printer with Advanced Technology

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE,CCE,SIRA
Model Number:	ET5235
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	film and foam with wooden boxes packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Highlight:

Advanced Technology Vision Stencil Printer

Full Automatic Vision Stencil Printer

OEM PCB Assembly Vision Stencil Printer

Product Description

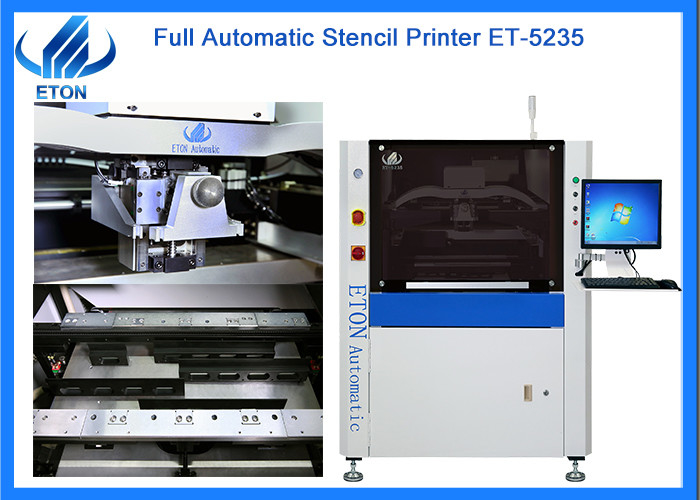

ET5235
FULL AUTOMATIC VISION STENCIL PRINTER MACHINE

Product Name	Full automatic vision stencil printer machine
PCB size	Max: 520350mm/Min: 5050mm
PCB Thickness	0.6-6mm
Transport height	900±20mm
Transport direction	Left-Right; Right-Left; Left-Left; Right-Right
Transport speed	Max 1200mm/s Programmable
Print head	Two independent direct-connect motor-driven print heads
Squeegee speed	6~300mm/sec
Squeegee angle	55°(Standard)
Squeegee type	Steel scraper(Standard),PV scraper(Option)
Stencil separation speed	0.1 〜20mm/sec Programmable
Cleaning system	Dry,Wet,Vacuum (Programmable)
Printing accuracy	Printing accuracy
Cycle time	≤9s (Exclude printing & cleaning)
Product changeover	<5Min
Power input	AC:220±10%,50/60HZ 1Φ 3KW
Dimension	1240(L) x 1450(W) x 1650(H)mm
PCB transfer overhead height	10mm
Control method	PC control

Related Products

Certificate

ETON YOUR SINCERE PARTNER

With over 20 years specializing in SMT high-speed pick and place machines, ETON is a
leading manufacturer in the industry. Our products are exported to 30+ countries, including South Korea, India, Vietnam, Tunisia,
Egypt, Turkey, Russia, Brazil, and more.
ETON boasts an impressive track record with 14 invention patents, 135practical patents, and 55 software copyrights. Pioneers in
the Chinese SMT machine field, we bring over 11 years of experience and hold CCC, SIRA, and CE certificates.

Packing & Delivery

The packaging process for our machines involves several steps to ensure their protection during transportation. First, we pack the machine in film to prevent dust and water exposure. Next, we use foam cotton to provide additional protection for the exterior of the machine. To keep the machine dry during transportation, we employ vacuum packaging.
Finally, for secure transportation, the machine is placed in wooden boxes and transported by truck to the specified port. This meticulous packaging approach aims to safeguard the machine from potential damage and environmental factors throughout the shipping process.

Company Introduction

ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with14 invention patents, 135practical patents, and 55 software copyrights of intellectual property technologies.
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.With a dedicated team of 500 employees, ETON takes pride in offering overseas engineers
for free installation and training. Choose ETON as your reliable and experienced partner in the SMT industry.

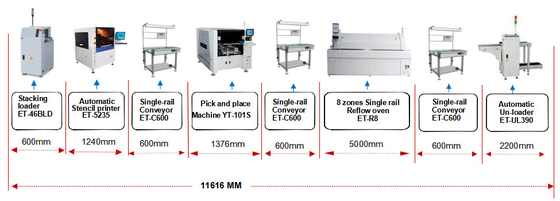

We can provide SMT line solution for you!
Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc

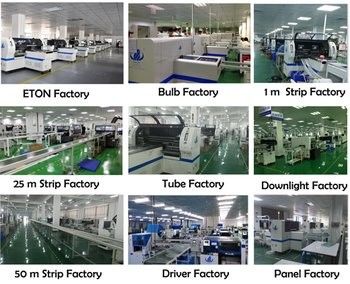

1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
2.Provide Overseas engineers for Free installation and free training.
3.TOP brand of China SMT machine manufacturer,500 employees for ETON

FAQ

Q.Can I go and see if you have sold the equipment to India?
A.Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.

Q.How many products can your machine make per day?
A.The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.

Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.

Q. How can I contact you to buy the goods in an efficient way?
A. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.

Q. How can I look around your industrial park if I am on aboard?
A. If you have Chinese agent we can make an appointment to show you the environment, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.

Q.What kind of machine you have?
A.We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.
