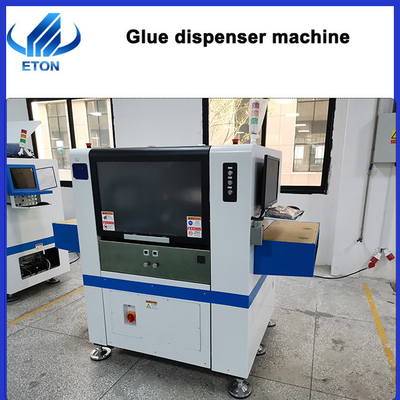

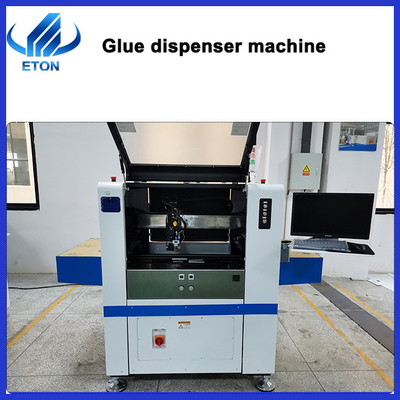

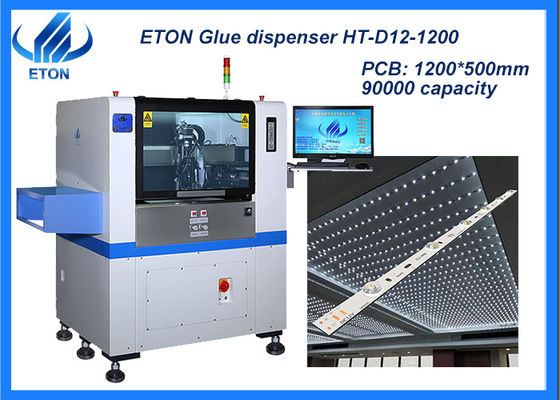

Max 0.6m PCB High Quality SMT Glue Dispenser for Lens TV Back Light Production Device

Large Image : Max 0.6m PCB High Quality SMT Glue Dispenser for Lens TV Back Light Production Device

Product Details:

Place of Origin:	china
Brand Name:	ETON
Certification:	CE,CCC, SIRA
Model Number:	HT-D12-600
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	film, foam cotton, vacuum package with wooden box
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Highlight:

0.6m PCB SMT Glue Dispenser

High Quality SMT Glue Dispenser

SMT Glue Dispenser for Lens

Product Description

HT-D12-600

Automatic glue dispenser machine

Specification

Length	1450mm
Width	1050mm
Height	1800mm
Total Weight	700kg
No. of Camera	1 set industrial camera
Dispensing accuracy	0.1mm
Heating temperature	200℃
Dispensing speed	90000CPH
Power	220AC 50HZ
Power Consumption	1.5kw
Operating Environment	23℃±2℃
Drive way	Magnetic linear motor drive
Max running Speed	1200mm/sec
Transmission Direction	Single(left→ right or right→ left)
Transmission Mode	Auto Online drive

* English interface option, easy to operate
* CCD positioning system, visual positioning compensation automatically, correct the deviation of PCB.
* Large size track, suitable for different size of PCB.
* Contactless high speed injection dispensing head, dispensing glue continuously with high efficiency.
* Intelligent dispensing head ensure good performance , high efficiency and lower glue wasting .
* Full time monitoring of glue volume, auto-prompting low glue volume .
* Dispensing head constant temperature function, ensure the glue in liquid.
* Control the dispensing value in milliseconds, ensure the conformity of glue volume.
* Online visual programming, load CAD easily more convenient.
* Automatic program standby, start up production rapidly, intelligent manufacturing .
* Apply to various kinds (round, linear, lattice etc.) of products.
* High performance linear servo motor drive for X,Y,Z axes, ensure high accuracy in high speed.
* Universal signal connecting, connect equipment online easily.
* Large capacity SSD industrial control system ,high speed access ensures system response speed

SMT line solution

Packing & Delivery

Step 1: Wrap with stretch film to prevent the equipment from dust and water.Step 2: Vacuum paper packaging and moisture-proof bag,so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.

Company Profile

00:00

00:26

With over 20 years specializing in SMT high-speed pick and place machines, ETON is a
leading manufacturer in the industry. Our products are exported to 30+ countries, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, and more.
ETON boasts an impressive track record with 14 invention patents, 135 practical patents, and 55 software copyrights. Pioneers in the Chinese SMT machine field, we bring over 11 years of experience and hold CCC, SIRA, and CE certificates.
Our global presence spans South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, and beyond. ETON provides comprehensive SMT line solutions, including pick and place machines, reflow ovens, stencil printers, PCB conveyors, SPI, AOI, and more.Specializing in SMT machines for LED bulbs, DOB, lenses, panel lights, downlights, streetlights, tubes, 0.5m, 1m strip lights,etc., ETON is a top brand in China's SMT machine manufacturing. With a dedicated team of 500 employees, ETON takes pride in offering overseas engineers for free installation and training. Choose ETON as your reliable and experienced partner in the SMT industry.

Customer’s Workshop Show

FAQ

1)Can I go and see if you have sold the equipment to India?
Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.

2) What kind of machine you have?
We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.

3) It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know
how to make it more intelligent and operate friendly.

4) Does your machines have quality certificates?
We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 13 years) in LED light production line program.
