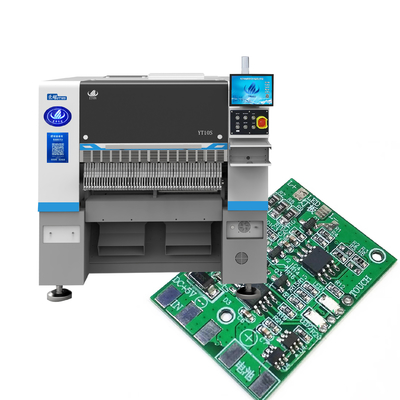

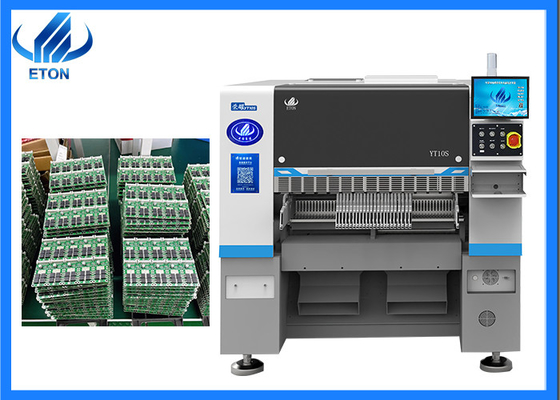

0201 Skd High Precision PCB Board Assembly Multi-head SMT Pick and Place Machine

Large Image : 0201 Skd High Precision PCB Board Assembly Multi-head SMT Pick and Place Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CE,CCC,SIRA
Model Number:	YT10S
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	film, foam cotton, vacuum package with wooden box
Delivery Time:	15 WORKING DYAS
Payment Terms:	T/T
Supply Ability:	50 SETS PER MONTH

Contact Now

Detailed Product Description

Highlight:

0201 Skd PCB Board Assembly

High Precision PCB Board Assembly

Multi-head SMT Pick and Place Machine

Product Description

Specification

Model	YT10S
PCB Length Width	Max:500450mm(1200450 option) Min:50*50mm
PCB Thickness	0.5-5mm
PCB Clamping	Cylinder clamping, track width adjustable
Mounting Mode	Group picking and separate placingseparate picking and separate placing
Mounting Precision	CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ)
Mounting Height	≦16mm(Other height can be customized)
Mounting Speed	48000 CPH(Under best condition)
Components	0201~15MM packaging material and IC material(Optional fixed camera for 0201~35*35MM), Other component size can be customized
Components Space	0.2mm
No. of Feeders Station	52 PCS (104 PCS option)
No. of nozzles	10 PCS
Power	220AC 50HZ

Market

Our Exhibition

Eton actively participates in both domestic and international exhibitions annually, showcasing its SMT pick and place machines.Domestic events include Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, and Chongqing LED Light Exhibition. Internationally, Eton engages in exhibitions such as India Mumbai, India Delhi, Egypt, Turkey, Pakistan, and Thailand. With experience spanning over 30 countries and regions, Eton remains dedicated to promoting its SMT solutions worldwide.

00:06

01:16

Related SMT Machine

ETON, a prominent SMT high-speed pick and place machine manufacturer in China, offers
comprehensive solutions for SMT production lines, including peripheral devices such as stencil printers, conveyors, glue dispensers, shutter, and reflow ovens.

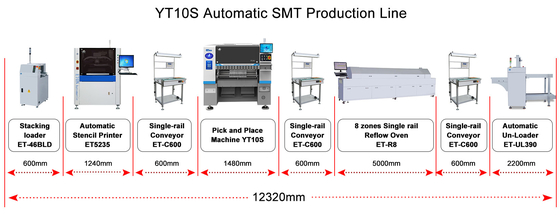

Our complete SMT production line for LED light production includes the following essential machines:
1. Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll-to-roll LED strip light assembly machine

With ETON, you can access a seamlessly integrated and efficient SMT production process for LED light manufacturing.

FAQ

Q. How can I look around your industrial park if I am on aboard?
A. If you have Chinese agent we can make an appointment to show you the environment, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.


Q.Whether you have professional engineers for installation of the machine in India?
A. Yes, we have professional engineers in India with local office site in Delhi and Daman to provide considerable service to our clients.

Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.

Q. How many components can your pick and place machine mount in a PCB board?
A. While this is for our clients needs and the size of the PCB board.
