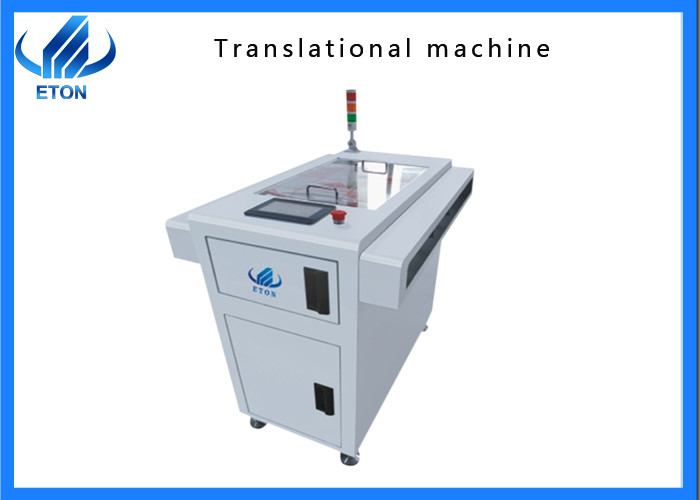

Features
It is suitable for SMT production line to realize parallel load transfer between two positions for confluence or diversion.
(1) The frame is made of thickened sheet metal.
(2) Guide rail is made of special aluminum.
(3) The shifting action is driven by a stepper motor.
(4) The track is driven by a stepper motor.
(5) Panasonic PLC programmable controller control.
(6) Touch screen operation (display control).
(7) Single/double shift trolley is optional.
(8) Single/double track operation structure is available.
(9) Compatible with SMEMA interface.
(10) Smooth design buffer deceleration.
(11) A variety of length shifts are available.
Technical parameter
|
Model
|
500 mm Shuttle conveyor
|
|
Dimension
|
L1300xW640xH1130mm
|
|
Max PCB
|
500*390mm
|
|
Process lane
|
Single
|
|
Trolley amount
|
1
|
|
Cycle time
|
Approx 10 sec
|
|
Process height
|
900±20mm
|
|
Flow direction
|
L→R or R→L
|
|
Board thickness
|
Min 0.6mm
|
|
Weight
|
90kg
|
|
Power requirement
|
220V, 50Hz ,0.12KW
|
Related SMT machine
We can provide you a whole SMT line solution and equipment, you can look this picture, we have semi-auto/full-automatic stencil printer, glue dispenser(this machine is mainly for making led lens), conveyor, reflow oven, etc.
We can meet your any demands for equipment, and pursue quality higher than price for machine manufacturing
Company information
ETON is China’s largest manufacturer of SMT machine, industrial park more than 50000 square meters.
ETON got more than 14 years R&D experience in SMT industry equipped with core technology
ETON Got large more than 80% big led lighting industry market, machine hot sell to more than 20 countries.
ETON R&D Chinese first automatic stencil printer machine for roll to roll 100 m led strip light
ETON R&D super high speed pick and place machine, 250000 CPH, fastest in all over the world
Service
After-sale
1)On-site Free installation.
2)One-year Warranty factory service.
3)Two regular visits customer one year.
4)Free technical training
Technical support
1)Free technical training of operating and maintenance.
2)7*24 hours technical online support.
3)Local engineer in India(Delhi, Mumbai and Daman), Turkey, Egypt.
Packages
Packaging: standard is plastic film wrap the LED SMT machine, then load into one 20" container; Wooden box packing can be customized.
Delivery: 35-40 days after 30% T/T prepayment, buyer should come to inspect when we do test running, after testing, pay the 70% balance before delivery
