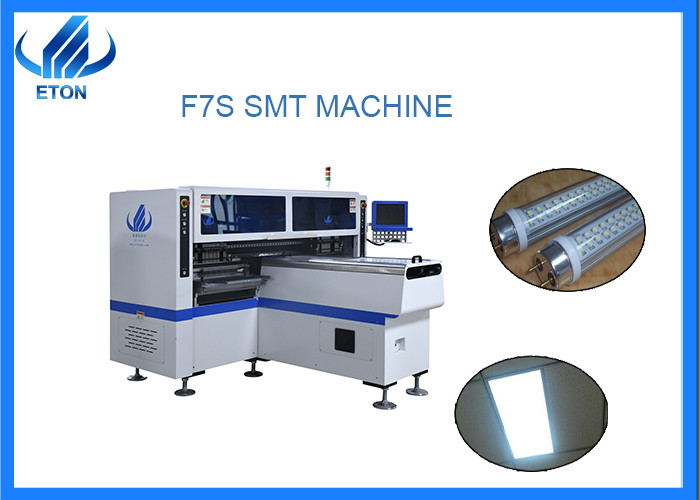

HT-F7S is a high-speed dual arm special placement machine, which is the best of high-speed machines. The placement of 2-4 kinds of materials at the same time does not affect the high production capacity. It is suitable for 0.6, 0.9, 1.2 meter hard light plate and half meter one meter soft light belt. Special for both arms. The mounting head is divided into left and right groups, with 17 suction nozzles in each group, a total of 34. 68 Feida. The lamp tube and lamp belt described above are specially pasted. High speed: the optimal production capacity per hour is 180000 CPH. It has its own correction function and can be pasted with RGB. It has an exclusive patented technology: group taking and separately placing.
| Dimension |
2700*2300*1550mm |
| PCB Size |
Max:1200*330mm
Min:100*100mm
|
| PCB Thickness |
0.5~5mm |
| Mounting mode |
Group picking and group placing |
| Mounting precision |
±0.02mm |
| Mounting height |
≤5mm |
| Mounting speed |
150000-180000 CPH |
| Components |
LED 3014/3020/3528/5050 and resistors,capacitors,bridge rectifiers etc. |
| Components space |
0.5mm |
| No.of feeders station |
68 PCS |
| No.of head |
34 PCS |
| Power |
380AC 50Hz |
| Power consumption |
6KW |
| X,Y,Z Axis drive way |
High-end magnetic linear motor and servo motor |
Honor customer
Many domestic and foreign customers to reach a long-term cooperation with ETON. ETON is Top brand of SMT machine in China, Got large more than 80% big led lighting industry market;
Our products are exported to more than 20 countries & regions, Such as South Korea, Turkey, Egypt, India, Russia, America, Brazil, Tunisia, Poland, Lithuania, South Africa, IranVietnam, Pakistan , Saudi Arabia, Uzbekistan, Nigeria , Germany, etc.
Company information
ETON is China’s largest manufacturer of SMT machine, industrial park more than 50000 square meters.
ETON got more than 14 years R&D experience in SMT industry equipped with core technology
ETON Got large more than 80% big led lighting industry market, machine hot sell to more than 20 countries.
ETON R&D Chinese first automatic stencil printer machine for roll to roll 100 m led strip light
ETON R&D super high speed pick and place machine, 250000 CPH, fastest in all over the world
Service
1.We have local India engineer, as long as you buy the machine, we will arrange engineer to install, debug, and training you for free, until you learn to operate the machine, service is very convenient. We have offices in Mumbai and New Delhi, very quick to support.
2.Chinese engineers provide online services.
3.If necessary, Chinese engineers will come to your factory for free install and training.
4.Besides, India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
5. One-year warranty period, any parts that need to be replaced or repaired during the warranty period are free.
6.Once you buy our machine, you will enjoy free software upgrades for life.
FAQ
Q1: How to pay after buying the product?
A:For payment, we only support L/C and T/T at present. If you choose T/T, you will have to pay 30% deposit, and the remaining amount will be paid before shipment.
Q2: What is the application scope of your product?
A:Our products have great advantages in the production of LED lamp drivers and light source. If you are an LED lamp manufacturer or are transferred to this industry, we can provide you with more information.
Q3:Have you obtained any certificates for your products?
A:Yes,Our machine has won many certificates, such as CCC, CE, SIRA, and our enterprise has won the national high-tech award because of its strong R & D strength.
Q4:How are your products packaged?
A:All machines are packed with vacuum and wooden packing like the one in the pictures.
Q5:I'd like to know how your machines are transported?
A:We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. --- Sea shipping for machine.
