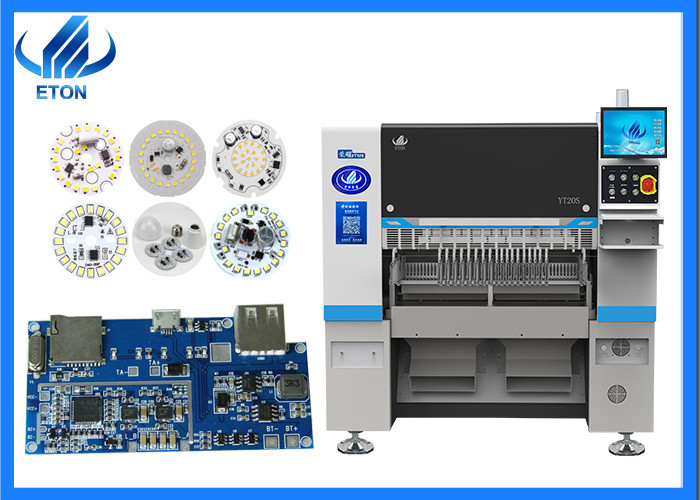

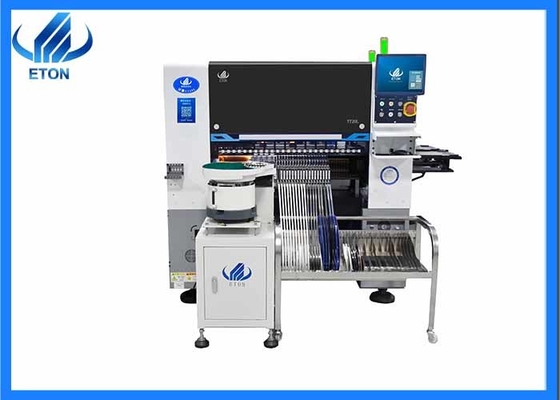

New Value Series Reach 80000 CPH SMT Mounter 20 Heads SMT Mounting Machine

New value series reach 80000 CPH SMT mounter 20 heads

Machine main features

• Adopt High speed multi modular head, apply to ultra small chip 0201~40*40mm large chip, wider component range;
• Brand new flight vision camera improve recognition performance, size up to 40*40mm, apply to BGA or CSP etc;
• Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;
• Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach 80000 CPH;
• Brand new self-developed high precision placement head;
• Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy;
• Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS),freely switching between docking cart and IC tray feeder(IC tray feeder:Option)
• Smart Double-Head tape feeder: Support YT series double head intelligent electric tape reel feeder, by optically correcting the feeding position of the component, it can achieve stable, accurate and high-speed feeding;
• The placement head adopt independent vacuum detection, improve placement performance;
• Off-line programming, save time of changeover cycle;
• Software AI intelligent learning function and automatic optimization function.
• Two gantry, 20 spindles*2 Gantry, total 40 spindles;
• Flexible PCB handling capabilities, double rail, both gantry can mount the same large PCB at the same time, realizing flexible production.



  Technical Parameter

  Model	YT20S
  PCB size	Max size: 500*450 mm(Single side) 500*300(Double side) Min size: 50*50 mm
  PCB thickness	0.5-4.5 mm
  PCB clamping	Cylinder clamping, track width adjustable
  Rail	2 rail, 2 gantries(Rail 1,4 are fixed rail)
  Software	R&D independently
  Production management MES system	Customized (Option)
  Off-line programming	Available
  Camera	Bottom vision camera recognition/ Flight identification camera
  Repeat precision	±0.02 mm
  Mounting height	≦15mm
  Position mode	Optical
  Optimal speed	80000 CPH
  Component range	Min 0201~40*40 mm tape reel packages and IC tray feeder etc.
  Position mode	Optical
  No.of heads	Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS),freely switching between docking cart and IC tray feeder(IC tray feeder:Option)
  Feeding way	Intelligent double head feeder
  X,Y,Z Axis drive way	High-end magnetic linear motor + Servo motor
