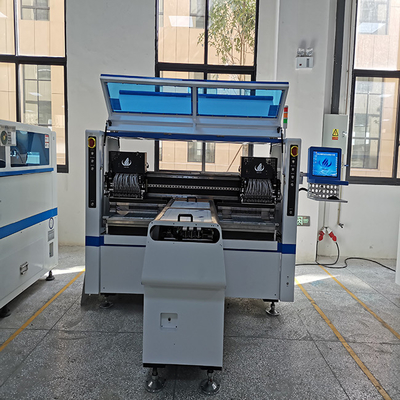

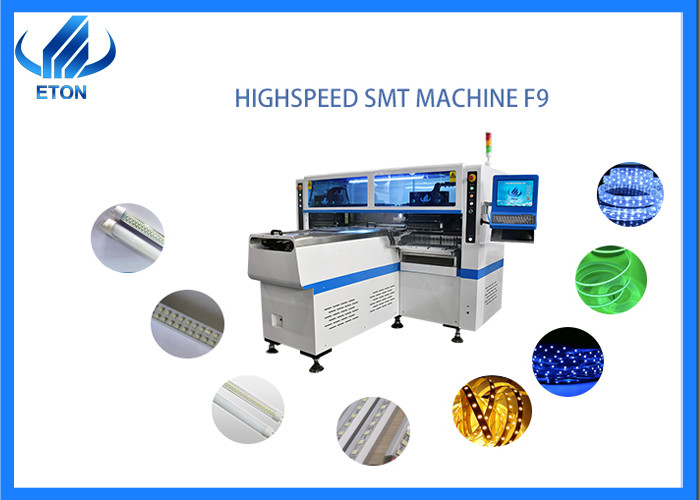

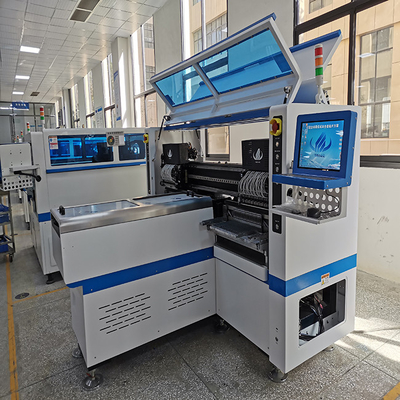

HT-F9 pick-and-place machine
Producing four different materials simultaneously will not affect high productivity. It is applicable to rigid light boards of 0.6m, 0.9m and 1.2m, as well as flexible light strips of 0.5m and 1m. It can be installed once without waiting under any proportion of LED chips and resistors
Features
1. High-end magnetic linear motor + Panasonic Servo Motor
2. 64 heads, 64 feeder stations
3. Group to pick and group to mount
4. Vision alignment, Mark Correction
5. Capacity can Reach 200000 CPH
HT-F9 Main parameters
|
Dimension
|
2700*2300*1550mm
|
|
PCB size
|
Max:1200*330mm Min:100*100mm
|
|
PCB Thickness
|
0.5-5mm
|
|
Mounting Mode
|
Group to take and group to mount
|
|
No. of Camera
|
5 PCS digital camera
|
|
Mounting Speed
|
200000-250000 CPH
|
|
Applicable Components
|
LED 3014/3020/3528/5050,resistor,capacitors,bridge rectifiers
|
|
Feeders Station
|
68PCS
|
|
No. of Nozzles
|
68PCS
|
|
X,Y Axis drive way
|
High-end magnetic linear motor +servo motor
|
SMT Production Line
- Semi auto stencil printer is aim of leaking solder paste or patching adhesive onto the solder pad of PCB to prepare for the welding of components;
- Pick and place machine is to mount light beads or other surface mounted components at the designated position of PCB board；
- Reflow oven is to melt the solder paste to fix and bond the components and PCB board;
- Conveyor is used for the connection between SMT production lines, as well as buffering, testing, testing PCB boards or manual plug-in of electronic components;
Application
Market
- Many domestic and foreign customers to reach a long-term cooperation with ETON. ETON is Top brand of SMT machine in China, Got large more than 80% big led lighting industry market;
- Our products are exported to more than 20 countries & regions, Such as South Korea, Turkey, Egypt, India, Russia, America, Brazil, Tunisia, Poland, Lithuania, South Africa, IranVietnam, Pakistan , Saudi Arabia, Uzbekistan, Nigeria , Germany, etc.
Services
1.We have local India engineer, as long as you buy the machine, we will arrange engineer to install, debug, and training you for free, until you learn to operate the machine, service is very convenient. We have offices in Mumbai and New Delhi, very quick to support.
2.Chinese engineers provide online services.
3.If necessary, Chinese engineers will come to your factory for free install and training.
4.Besides, India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
5. One-year warranty period, any parts that need to be replaced or repaired during the warranty period are free.
6.Once you buy our machine, you will enjoy free software upgrades for life.
