produce two to four different types of materials at the same time,
Total 34 heads with double mounting heads, Each mounting head has 17 nozzles,
For Every mounting head, it can be mounted separately or synchronously.

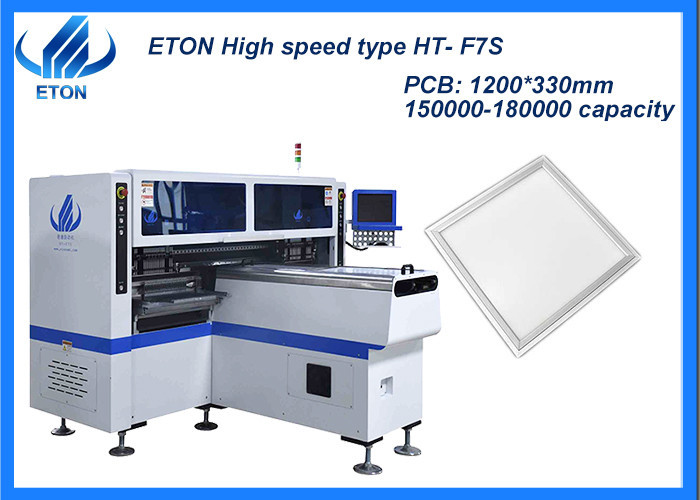

For led tube light SMT machine HT-F7S, the optimum mounting speed can reach 180000 CPH.
HT-F7S is professional and high speed pick and place machine, because it mainly adopt the group to pick and group to mount mounting mode.
Technical parameter
| Model: |
HT-F7S |
| PCB Length Width: |
Max:1200*330 mm
Min:100*100 mm
|
| Mounting speed: |
150000-180000 chip per hour |
| No. of Feeder station: |
68 PCS |
| Power |
380 AC 50HZ |
| Dimension: |
2700*2300*1550 mm |
| PCB Clamping: |
Adjustable pressure pneumatic |
| Components: |
SMD LED 3014/3020/3528/5050/5735/5630 and resistor, capacitor, bridge rectifiers, etc |
| No. of Nozzles: |
34 PCS |
| Feeding way |
Electric feeder with double motor |
HT-F7S Semi-auto SMT line Solution
Exhibitions
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
Services
1.We have local India engineer, as long as you buy the machine, we will arrange engineer to install, debug, and training you for free, until you learn to operate the machine, service is very convenient. We have offices in Mumbai and New Delhi, very quick to support.
2.Chinese engineers provide online services.
3.If necessary, Chinese engineers will come to your factory for free install and training.
4.Besides, India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
5. One-year warranty period, any parts that need to be replaced or repaired during the warranty period are free.
6.Once you buy our machine, you will enjoy free software upgrades for life.
