Automatic smt production line /led lamp production solution /PCBA factory
SMT production line solution application
Suitable for 0201 ~ 15*15 mm Packaging material (optional fixed identification camera 0201~40*40mm) and ic tray material
Application products: 3C products, power driver, home circuit control board, DOB bulb, light emitting diode
significant attribute
Industry attribute
Other attributes
|
weight
|
2200kg
|
|
guarantee period
|
One year
|
|
source area
|
Guangdong, China
|
|

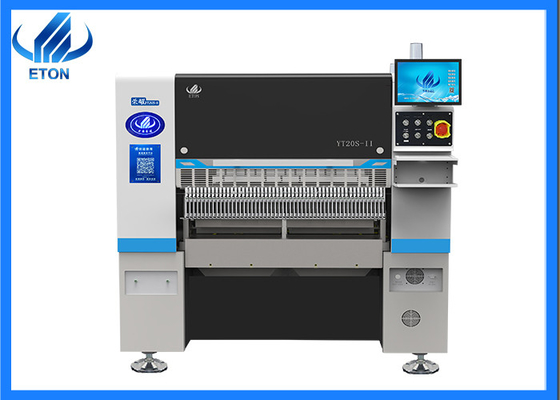

model
|
YT20S
|
|
Size
|
1480mm*2680mm*1650mm
|
|
software
|
R&D independently
|
Factory information
|
factory
|
52000㎡ INDUSTRIAL PARK
7 BUILDINGS
500+ STAFF
|
|
Port
|
shenzhen
|
product description
Option function
Various options contribute to flexible production
Feed car
One feed truck can accommodate 23
Integrated circuit cabinet
Supports 20 layers of pallets, with the ability to switch freely
Fixed the flight vision camera
Visual calibration of image position, alignment correction, light source brightness can be adjusted
Machine highlight
High speed multi-module head
High speed multi-module header. Suitable for ultra-small chips 0201-40 * 40mm large chips. Wider range of components
New flying vision camera
Improve recogn1t1on performance with sizes up to 40mm by 40mm for BGA or CSP, etc
Vacuum sensing device
Each placement head has an independent detection function, which improves the stability of the equipment and the reliability of the product.
Specification
|
PCB length width
|
Dual module and dual track:
Max: 500x300 mm Min: 50x50 mm
Single module and single guide:
Max: 500x450 mm Min: 50x50 mm
|
|
Installation speed
|
98000 CPH
(under the best conditions of our company)
|
|
air feed
|
0.4-0.6Mpa (4-6Kgf/㎡)
|
|
Transmission mode
|
On-line drive
|
|
Position mode
|
optics
|
After-sales service
For SMT factory setup, we can do for you:
1. We provide you with complete SMT solutions
2. We provide the core technology for our equipment
3. We provide the most professional technical services
4. We have rich experience in SMT factory setup
5. We can solve any problems related to SMT
company profile
ETON is the largest SMT machine manufacturer in China with an industrial park of more than 52,000 square meters.
ETON has more than 14 years of R&D experience in the SMT industry equipped with core technologies
Eaton develops the world's first automatic stenograph press roll-to-roll 100-meter LED strip lamp
Packing
Remark
1. Terms of payment: 30% deposit, 70% balance should be paid before T/T
shipment.
2. Delivery time: 30 days after deposit.
Warranty: 1 year. (including spare parts
