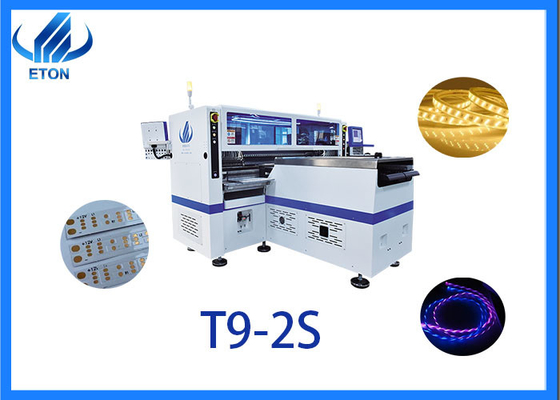

T9-2S Super high speed roll to roll led flexible strip light pick and place machine
Description
High speed modular heads T9-2S apply to LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc. With unique design component leaking detection and individual component refill function, adjust the conveying platform according to various roll to roll strip, range 250±10 mm, the max length range is 1M per cycle.
Machine main parameter
|
Model
|
T9-2S
|
|
Dimension
|
(L)3454*(W)3035*(H)1777 mm
|
|
Total weight
|
3100 kg
|
|
PCB size
|
250(±10)mm* Any length
|
|
PCB thickness
|
0.1-0.5 mm
|
|
PCB clamping
|
Vacuum adsorption, cylinder clamping, track width adjustable
|
|
Mounting way
|
Group picking and group placing
|
|
Mounting mode
|
Double rail + Four groups of placement heads
|
|
No. of camera
|
10 sets (Digital camera)
|
|
Software
|
R&D independently
|
|
Repeat precision
|
±0.05 mm
|
|
Mounting height
|
≦5 mm
|
|
Mounting speed
|
Double side: 500,000 CPH
Single side: 250,000 CPH (Optimum speed)
|
|
Components range
|
LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc.
|
|
Power consumption
|
9.6 KW
|
|
No. of feeder station
|
Double side: 136 PCS (Single side: 68 PCS)
|
|
No. of nozzles
|
Double side: 136 PCS (Single side: 68 PCS)
|
|
Step 1
|
Loader Machine
|
Sending the FPCB roll to printer machine
|
|
Step 2
|
Semi-automatic Stencil Printer
|
Printing the solder paste on the flexible PCB
|
|
Step 3
|
Buffer Stage
|
Buffer and transport the flexible PCB to pick and place machine
|
|
Step 4
|
Pick and Place Machine
|
Mounting LED chips and components on flexible PCB
|
|
Step 5
|
Transportation Belt Line
|
Transport the flexible PCB to reflow oven
|
|
Step 6
|
Reflow Oven
|
Heating the solder paste with FPCB to welding the components on FPCB
|
|
Step 7
|
Unloader Machine
|
Rewinding the finished Flexible strip
|
Market
Our products had exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Certifications
Since the establishment, ETON focus on technology reach and development, obtains a number of intellectual property technologies,including 9 invention patents, 112 practical patents, 12 software copyrights.
ETON is rated as “Shenzhen High-tech enterprise” ”Guangdong high-tech enterprise” “China high-tech enterprise” “2015 LEDTechnology Innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” etc.
ETON Company
With 18 years of industry experience, we have developed many types of placement machines, such as ultra-high speed machine and multi-function machine.
We can choose different types of products according to your production needs.
If you are in the SMT industry, please don't miss our company.
