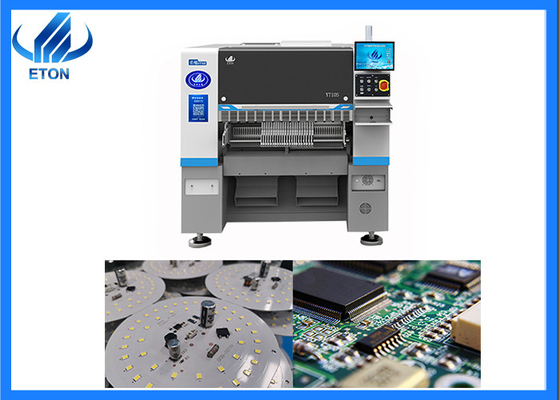

YT10S SMT Production Line With Electric Feeder With Double Motor

YT10S SMT Production Line With Electric Feeder With Double Motor
YT10S SMT Production Line With Electric Feeder With Double Motor

Large Image :  YT10S SMT Production Line With Electric Feeder With Double Motor

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC
Model Number: YT10S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: wooden case
Delivery Time: 15work day
Payment Terms: T/T
Supply Ability: 50set per month
Contact Now
Detailed Product Description
Highlight:

YT10S SMT Production Line

,

Electric Feeder SMT Production Line

Machine main parameter
PCB length width Max:500*350mm min:50*50mm
mounting speed 45000CPH Optimal speed
No. of head 10 PCS
Feedering way electric feeder with double motor
No. of Camera Cylinder clamping,track width adjustable
Power&power consuption  220V 50HZ 1.5kw
components led chips,resistor,capacitor,IC,shaped components,etc
X,Y axis drive way high-end magnetic linear motor
Features of YT10S SMT pick and place machine

Head Flight Vision recognition Camera
Components with size less than 10mm high-speed and high-precision identification.
●Mark recognition:High-precision Mark recognition system,adopt
3 color illumination recognition. apply to any shape Mark and
LENS(Blu-ray scan),wider range of applications.
●Fixed flight vision camera:High-speed flight vision camera,quickly captures multiple head images at once, perform visual calibration of image position,alignment correction,adjustable light source

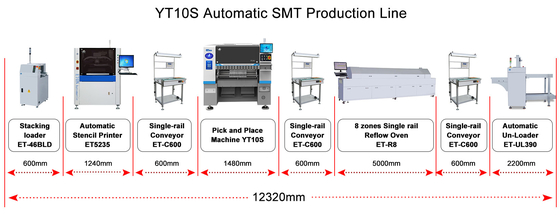

Production Process

Step 1

Loader Machine

Sending the FPCB roll to printer machine

Step 2

Automatic Stencil Printer

Printing the solder paste on the flexible PCB

Step 3

Buffer Stage

Buffer and transport the flexible PCB to pick and place machine

Step 4

Pick and Place Machine

Mounting LED chips and components on flexible PCB

Step 5

Transportation Belt Line

Transport the flexible PCB to reflow oven

Step 6

Reflow Oven

Heating the solder paste with FPCB to welding the components on FPCB

Step 7

Unloader Machine

Rewinding the finished Flexible strip

YT10S SMT Production Line With Electric Feeder With Double Motor 0

Certificate of honor

ETON, a leader in advanced technology and innovation, spearheads rapid market transformation through its cutting-edge solutions.

The company has secured numerous intellectual property rights and earned prestigious accolades, including:

  • Shenzhen High-Tech Enterprise Certification
  • National High-Tech Enterprise Certification (China)
  • Shenzhen Premier Brand
  • 2015 LED Technology Innovation Award
  • Fourth China LED Innovation First Prize (2015)

These recognitions underscore ETON’s commitment to driving technological excellence and reinforcing its position as an industry pioneer.


After sales service


After-service

■ Pre-Consultation: provides professional SMT solutions for the full line.
■ Factory Warranty: One-year warranty factory service.
■ Installation: On-site installation and commissioning, to ensure smooth production.
■ Technical Training: provides professional training from Level 1 to Level 3.
■ Technical Support: provides 7 * 24 technical support.
■ Software Upgrade: offers lifetime free software upgrades for all products Provide latest information about technology and equipment.
