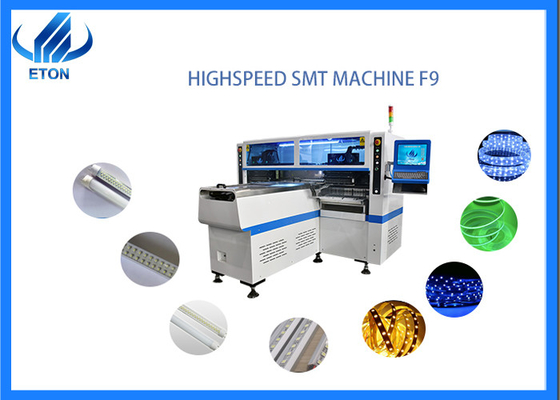

LED Dual Arm SMT Machine 250000CPH HT-F9 Maximize Your Production Capacity

HT-F9:LED Dual Arm SMT Machine PICK AND PLACE MACHINE

Key Product Specifications

1. Component Compatibility

   • LED Beads: 3014/3020/3528/5050
   • Standard Components: Capacitors/Resistors/Bridge Rectifiers
   • PCB Types:
     • Rigid Boards: 600/900/1200mm
     • Flexible Strips: 500/1000mm
     • Specialty Applications: Light tubes/Panel lights

2. Advanced Technical Features

   • Magnetic Levitation Dual SMD Heads
   • 4-Material Simultaneous Processing
   • Continuous Operation Capacity: 45,000 CPH

3. Unique Performance Advantages

   • Zero Downtime Material Switching
   • Patented Group Pick & Place Technology
   • Universal Material Ratio Compatibility

4. Technical Parameters

   • PCB Dimensions:
     Max: 1200×330mm (47.2"×13")
     Min: 100×100mm (3.9"×3.9")
   • Positioning Accuracy: ±0.05mm

• Repeatability: ±0.02mm

F9 Semi-automatic solution

ETON Profile
Shenzhen ETON Automation Equipment CO., LTD. is one of very few high-tech manufacturers committed to provide "professional, high efficiency, low consumption" automatic high-speed SMT pick and place machine for customers,combining product development,production,sales and service as one. At present,as for the series "HT" high-speed and multi-functional machine,speed is the world's fastest. "Speed" and "Stability" are the core competencies of ETON,technology innovation and strict quality management principles coupled with excellent service , to enable us provide better professional full SMT solution continously and create superior value for our customers.

FAQ

1. How many machines have been sold in India?
 We have successfully deployed hundreds of units across India, serving clients in automotive lighting, signage, and consumer electronics.

2. Can we visit your clients’ production sites in India?
To protect our clients’ confidentiality, factory visits are not available. However, we offer:

• Live virtual demos at our China facility
• Case studies with performance metrics
• References from established Indian clients

3. Is the machine difficult to operate?
Our machines feature:

• Smartphone-like intuitive interface
• Pre-loaded component libraries for common LEDs
• Free 3-day onsite training + 24/7 remote support

4. What is the lead time for urgent orders?
Expedited delivery options are available:

• Standard lead time: 15-20 days
• Urgent orders: As fast as 7 days (subject to component availability)
  Contact us with your timeline for customized solutions.
