Payment & Shipping Terms:
|Dimension:||2200*2850*1550 MM||Total Weight:||1600 KG|
|Wire Plate Size:||Max 250 MM* Any Length||Mounting Speed:||100000 - 150000 CPH|
|Power:||220 AC 50 HZ||No.of Nozzles:||30 PCS|
Producing with 2-4 types of materials with high capacity, avaible for 5M, 50M or any length of soft lamp strip continuously. Two model, 15 nozzles for each mounting part, part A or part B can be mounted separately or synchronously. Global first technology patent: counterfeiting not allowed.
IPC 9850 Capacity:100000-150000 CPH
Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0

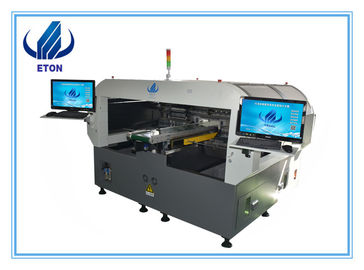

led bulb assembly machine/smt production line
|Soft lamp strip||Wire plate size||250MM* any length|
|Wire plate thickness||0.5~5mm|
|Wire plate clamping||Adjustable pressure pneumatic.|
|Mounting Mode||Group to pick and group to mount|
|Input Device||Keyboard, Mouse|
|Feeding system||No. of feeders||60 PCS|
|No. of nozzles||30 PCS|
|Feeder type||Electronic feeder|
|Vision System||No. of Camera||5 sets of imported camera|
|Vision for the flight identification + MARK correction|
|Mounting Precision||±0.02mm chip|
|Components||LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.|
|Power Consumption||5 kw|
|Conveyor Transmission||Belt drive|
|Transmission Direction||Single(left→right or right→left)|
|Transmission Mode||Online drive|
|Electrical control||Independent research and development by ETON|
|Motion control card module 2 sets||Independent research and development by ETON|
|X,Y Axies Driving||Servo motor for closed-loop feedback control for X,Y axies|
We use standard export packing(wooden case with vacuum packing)and deliver the goods at ShenZhen port 15days after payment.
After Sales Service
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
Shenzhen Eton Automation Equipment Co.,Ltd mainly takes professional, efficient and low consumption SMT full- automatic high-speed laminating machine as its responsibility, national high-speed technology enterprise integrating product development,production,sales and service.
Quality First, Client-oriented,
Long flexible strip(without cable)
Many high speed mounter—one reflow oven.
Q: Why choose us ?
We adopt professional, high efficiency, low consumption and specialized in research and development, production, sales and service of SMT high-speed SMT machine automation.
Q: What is your delivery date?
The delivery date is about 15 days after receipt of payment.
Q: What's the credibility of your brand?
Our company stick to sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q:What are the main LED products do our machines for?
There are different machines in our company, and different machines apply to different LED lights and components. The main products we can apply: bulb, tube, strip, lamp, panel. Down light, streetlight, ceiling light. wall washer light, power, driver, lens and so on.
