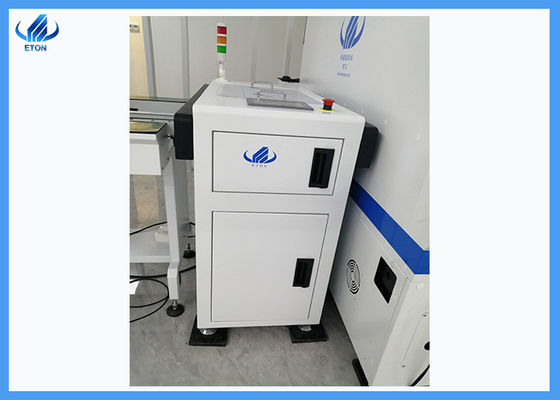

250mm Width Smt Conveyor Adjustable Length Double Rails Translational Conveyor

250mm Width Smt Conveyor Adjustable Length Double Rails Translational Conveyor
250mm Width Smt Conveyor Adjustable Length Double Rails Translational Conveyor 250mm Width Smt Conveyor Adjustable Length Double Rails Translational Conveyor 250mm Width Smt Conveyor Adjustable Length Double Rails Translational Conveyor

Large Image :  250mm Width Smt Conveyor Adjustable Length Double Rails Translational Conveyor

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: MV250D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Conventional wooden box packaging, vacuum inside, nail fixing and strapping machine
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
PCB Size(mm): 80*50-(330-1500)*250 Transport Height: 900±20mm
Transport Direction: Left-Right; Right-Left Dimension(mm): According To The Actual Arrangement Of The Production Line
Decentralized And Collective Functions: Two In And One Out, One In And Two Out,two In And Two Out, Three In And One Out (optional) Power Consumption: Single-phase AC110~220V (optional), Up To 500 Volt Amperes
High Light:

250mm Width Smt Conveyor

,

Adjustable Length Smt Conveyor

,

Double Rails Translational Conveyor

250mm Width Smt Conveyor Adjustable Length Double Rails Translational Conveyor



The features of machine



  • The semi-enclosed design improves the safety protection level;
  • PLC control system, color touch screen operation interface;
  • The position and direction of the access board are adjustable;
  • The width of the track can be automatically adjusted, and the displacement of the track is rotated by a precision screw;
  • It is suitable for the transmission of two lines, large distance, and PCB board.



Work process

  • The PCB board passes through the board-in rail of the transfer machine to reach the internal translation rail;
  • When the inductor senses that the PCB board reaches the translation track, the stepper motor on the track drives the timing belt, and the timing belt drives the track to the set output position;
  • After reaching the exit position, the belt on the exit track drives the PCB out of the board.

Parameter



Product name

Double translational conveyor

Model

MV250D

Dimension(mm)

According to the actual arrangement of the production line

PCB size(mm)

80*50-(330-1500)*250

Decentralized and collective functions

Two in and one out, one in and two out,two in and two out, three in and one out (optional)

Transport height

900±20mm

Transport direction

Left-Right; Right-Left

Weight(Kg)

Determined by specific itinerary and requirements

Power Consumption

Single-phase AC110~220V (optional), up to 500 volt amperes

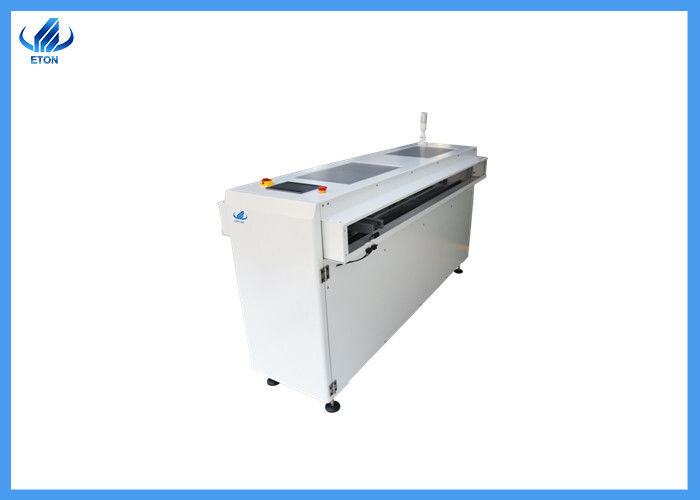

250mm Width Smt Conveyor Adjustable Length Double Rails Translational Conveyor 0

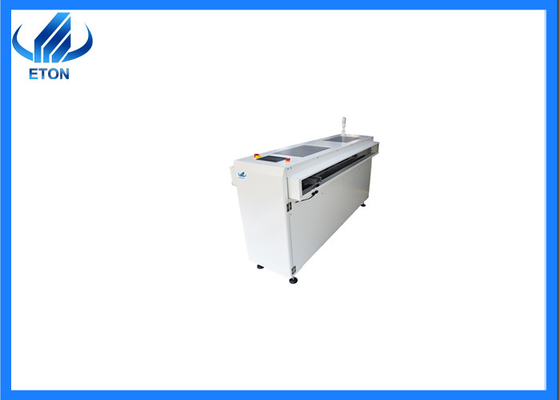

250mm Width Smt Conveyor Adjustable Length Double Rails Translational Conveyor 1

Excelent services

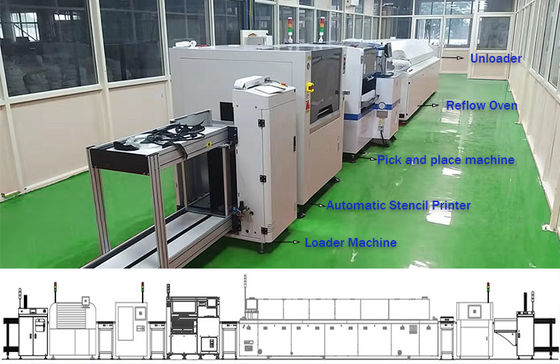

1. We provide fulL SMT solution for you;
2. We provide core technology with our equipments;
3. We provide the most professional tech service;
4. We have wealthy experience on SMT factory setup;
5. We can solve any question about SMT.

250mm Width Smt Conveyor Adjustable Length Double Rails Translational Conveyor 2

FAQ



1) Do you have oversea after sale service?
We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.
Abroad, we have India and Egypt office and local engineer, etc.
2) How is the training?
After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we
will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers
can't make it through, we also have special one-on-one online training and video tutorials.
3) It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know
how to make it more intelligent and operate friendly.
4) How can I buy this machine from you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F. Send your order by air or by sea.
