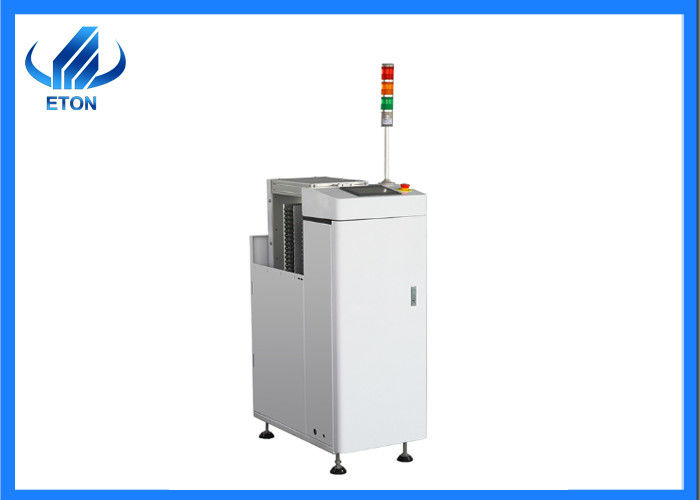

PLC LED Light Production Line Vacuum Loader Pcb Loader Machine

PLC LED Light Production Line Vacuum Loader Pcb Loader Machine
PLC LED Light Production Line Vacuum Loader Pcb Loader Machine

Large Image :  PLC LED Light Production Line Vacuum Loader Pcb Loader Machine

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE,CCC,RISR
Model Number: VP460
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB USD 10000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 work days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Name: Vacuum Loader Dimension: (600-1300)*1100*1200 Mm
Software: R&D Independently Warranty: 1 Year
Weight: 210 Kg Condition: New
Power Supply: AC220V 50Hz Application: LED Bulb Assembly Machine
High Light:

PLC LED Light Production Line

,

AC220V LED Light Production Line

,

AC220V Pcb Loader Machine

PLC LED Light Production Line Vacuum Loader Pcb Loader Machine



PLC automatic Vacuum loader pcb Loader Machine In LED Light Production Line



The features of Vacuum loader
1. The device of Loading PCB in the SMT production line.
2. PLC control, color man-machine interface operation;
3. Adopt several sets of independent vacuum generation system, stable and reliable adsorption;
4. The board-mounted platform automatically rises and falls, and the speed of loading PCB is fast.
5. PLC control system, multiple electrical circuit protection design, safe and stable;
6. Acousto-optic alarm system, text prompt for abnormal information, easy operation and maintenance;
7. Standard SMEMA signal communication mode.



Technical parameter of Vacuum loader

Vacuum loader VP460
Description This equipment is used for the operation of automatically sending circuit boards without parts to the production line
Loading time Around 6s or customer specified
PCB Thickness Minimum 0.6mm
PCB capacity MAX.200 pieces (0.6mm thick)
Power Consumption Single-phase AC110~220V (optional), maximum 200 VA
Air pressure and Air flow 4~6Bar,Up to 30L/min
Specification parameter
PCB size L*W(mm) 80*50-(510-1200)*460
Dimension(L*W*H)(mm) (600-1300)*1100*1200
Approximate Weight(kg) About 210



PLC LED Light Production Line Vacuum Loader Pcb Loader Machine 0



PLC LED Light Production Line Vacuum Loader Pcb Loader Machine 1

RFQ

Q : Is there any quality guarantee?

We stick to quality first, client-oriented, Continuous improvement!

Q: What is SMT Machine?

This is an LED lamp patch machine using surface mount technology.

Q: Whether the machine's after-sale service is guaranteed?

Each of our machines has a one-year warranty and will regularly visit customers for use.

Q: What we can do for you?

A: We provide SMT machine,we can aslo provide Production line scheme and so on.Professional Technical Support and Service.

Q: What is your delivery date?

A: The delivery date is about 25-30 days after receipt of deposit.

Q: What is your payment terms?

A: 30% deposit and 70% balance before shipment.

Q:This machine is easy to use ? if I have no experience, I can also operate it well ?

A:Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it will much faster to learn.
