Product Details:
Payment & Shipping Terms:
|
| Application:: | Led Light Electronics Production Pcb Assembly Line With Automatic LED Pick And Place Machine HT-E6T-1200 8 Heads | Applicable Components:: | LED Chip,IC,capacitors,resistors,shaped Components Etc. |
|---|---|---|---|
| NO. Of Head:: | 8 PCS | Capacity Speed:: | 35000CPH |
| PCB Size:: | Max:350*1200mm Min:50*50mm | Repeat Precision:: | ±0.02mm |
| Apply To:: | LED Light Making,(SMT Machine)PCB,Hard Light Board Or Soft Lamp Strip,etc. | Feeder Type:: | Electronic Feeder(double Motor,more Precision) |
| Name:: | Smt Pick And Place Machine/led Pick And Place Machine/led Chip Mounter | No. Of Feeder:: | 20 PCS |
| Highlight: | smt pick and place machine,smt mounter machine |
||
Product Description
1.Features:
♦ Auto-optimization feature after coordinates generated
♦ Electronic feeder feeding system.
♦ Flight identification,Vision camera,Mark correction,more precision
♦ It can produce all kinds of LED light,power driver,display etc.
♦ IPC9850 Capacity: 35000 CPH
Apply to the SMT machine, PCB,LED hard light board and LED soft lamp strip etc.
Apply to tube,driver,bulb,strip,lamp,panel,ceiling light,down light,screen,street light,flood light,etc.
Apply to LED chip,capacitors,resistors,IC,shaped components etc.(intelligent,use widely)
8 nozzles altogether,17 feeders,partA or partB can be mounted separatly. Easy to operate.
Patent Number: ZL 2011 2 0237740.9/ZL 2011 2 0334606.0
ZL 2012 2 0178869.1/ZL 2012 2 0415505.0
ZL 2012 2 0415044.7/ZL 2012 2 0415356.8/ZL 2012 2 0415061.0
2.Technical Parameter:
| Dimension | 2520mm(L)/1550mm(W)/1440mm(H) |
| PCB Length Width | Max.:350mm*1200mm Min.:50mm*50mm(W*L) |
| PCB Thickness | 0.5~3mm |
| Mounting Precision | ±0.02mm |
| Components | LED chip,IC,capacitors,resistors,shaped components etc. |
| Power Comsumption | 4KW/220AC 50HZ |
| Air Force | 0.5mpa |
| System | Windows 7 |
| Mounting Speed | 35000CPH |
3.Our Advantage:
Date Analysis Compared with other Manufacturers
| Manufacturers/Parameter | Speed | Head | Precision | Patent | service |
| Other company F130 | 15000CHP | 4PCS | 0.03mm | __ __ | NO |
| Other company 5M168 | 18000CHP | 6PCS | 0.03mm | __ __ | NO |
| Our Eton HT-XF | 150000~170000CPH | 34PCS | 0.02mm | Technology Patents | service office |
| Our Eton HT-T7 | 100000~130000CPH | 60PCS | 0.02mm | Technology Patents | service office |
| Our Eton HT-E8T | 80000CPH | 16PCS | 0.02mm | Technology Patents | service office |
| Data Comparision | 4 to 8 times higher than others | 4 to 8 times higher than others | higher precision | Global First | Support promptly |

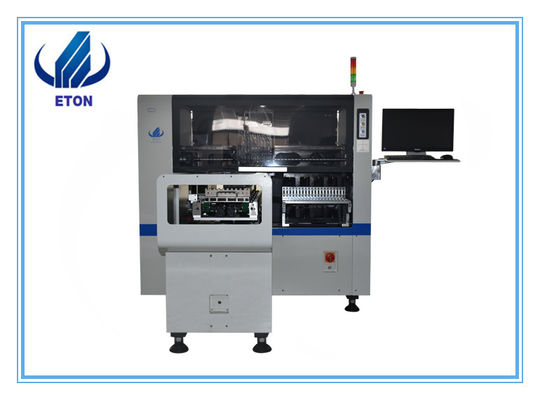

4.Product Image:
FAQ
1 .How is the SMT pick and place machine HT-E6T-1200 multifunctional machine ?
ETON has launched its new Middle-speed SMT Pick and Place Machine , Equipped with a newly developed parallel 8 nozzle head , the ETON SMT Pick and Place Machine is capable of mounting a wide variety of parts and improving the mounting speed by up to 20~30% . The ETON Pick and Place Machine is robotic assembly machine for mounting electronic components on a "PCB " in the printed board mounting process . In addition to increasing the number of components mounted per cycle , ETON Pick and Place Machine also includes a new mechanism to improve the mounting speed by automatically changing the recognition sensor height .
