F8: 5 sets of imported camera for RGB For Chip Mounter Machine

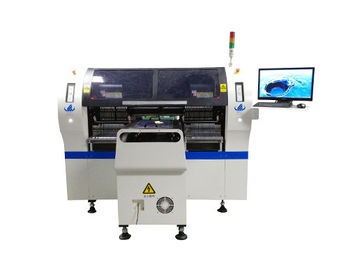

Large Image :  F8: 5 sets of imported camera for RGB For Chip Mounter Machine

Product Details:

Place of Origin: China
Brand Name: ETON
Certification: CE CCC ISO
Model Number: HT-F8

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $85000 - 86000 / Unit
Packaging Details: Standard export package(Wooden case with vacuum package)
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 50
Detailed Product Description
Dimension: 1600*1900*1600mm Total Weight: 1100 KG
PCB Length Width: Max:345*600 Mm Mounting Speed: 150000 CPH
Power Supply: 220 AC 50 HZ No,of Nozzles: 32 PCS
High Light:

smt pick and place machine


smt mounter machine

Technical Data

PCB PCB Length Width Max:345*600mm Min: 110*80 mm
PCB Thickness 0.5~5mm
PCB Clamping

Adjust and fix PCB automatically

by software

  Mounting Mode Group to pick and group to mount
O.S. system Windows7
software R&D independently
Display LED Monitor
Input Device Keyboard, Mouse
Feeding system No. of feeders 32 PCS
No. of nozzles 32 PCS
Feeder type Electronic feeder
Vision System No. of Camera 5 sets of imported camera
  Vision for the flight identification + MARK correction
Mounting Precision ±0.02mm chip
Mounting Height <15mm
Mounting Speed 150000CPH(optimum)
Components LED 2121/2727/3528/3535/5050 and resistor, capacitors, bridge rectifiers.
Components Space 0.2mm
Power 220AC 50HZ
Power Consumption 5 kw
Operating Environment 23℃±3
Conveyor Transmission Max length:600 mm
Transmission Speed >500mm/sec
Transmission Direction Single(left→right or right→left)
Transmission Mode Online drive
Air pressure >5.0kg/cm2
Electrical control Independent research and development by ETON
Motion control card module Independent research and development by ETON
X,Y Axies Driving Servo motor control for X,Y,Z axies


F8: 5 sets of imported camera for RGB For Chip Mounter Machine 0

Adjust and fix PCB automatically by software, No need support plate for mounting LED display, two model, 32 nozzles totally, part A and part B can work separately or synchronously. Correction automatically, high precision, available for RGB.

Global first technology patent: counterfeiting not allowed.

IPC 9850 Capacity:150000-170000 CPH

Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0

ZL 2012 2 0178869.1 ZL 2012 2 0415505.0

ZL 2012 2 0415044.7 ZL 2012 2 0415356.8

ZL 2012 2 0415061.0


Packing & Shipping

F8: 5 sets of imported camera for RGB For Chip Mounter Machine 1


Package: Standard export package(Wooden case with vacuum package)

Shipping: Shenzhen port within 15 days after payment


Company Profile

Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.

Eton mission: professional, excellent technology, sharing the results.

Eton goal: to create a national brand, build international Chinese enterprise.

Eton purpose: to create value for customers, creating benefits for society


After Sales Service

Pick and place machine—professional for LED display

Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free

Visit customer regularly and gather information.

Provide latest information about technology and equipment




Q:How long is the time of delivery?

Generally, the test delivery period is one month.

Q:If my order is very urgent, how long you can proceed?

We have helped many clients with their urgent demand. If your order is urgent, please check with our specialists to see if we can help.

Q:How are the products packed for sea shipment?

Most of the products have their unique packing, Then we put them into a carton. The cartons are sealed with tape.

Q:How can you make sure that the products won’t be damaged or wet?

We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.
