Product Details:
Payment & Shipping Terms:
|
| Name: | Reflow Oven | Model: | ET-R6 |
|---|---|---|---|
| Dimension: | L3000*W1000*H1490MM | PCB Max Size: | 350MM |
| Process Height: | 880±20mm | Startup Consumption: | 28KW |
| High Light: | high speed led mounting machine,smt assembly machine |
||

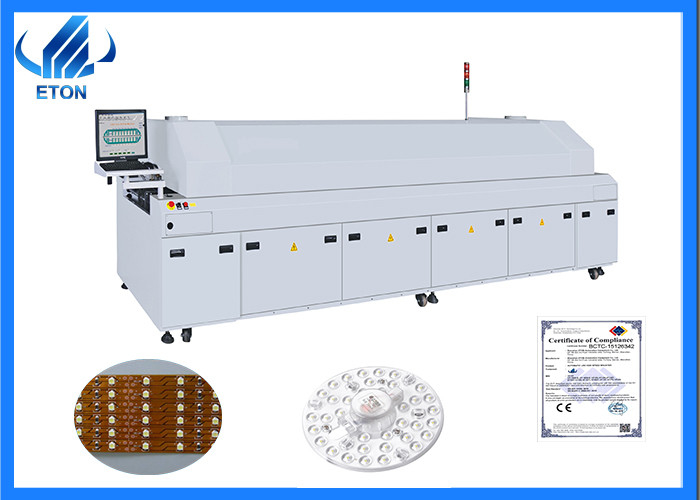

Good Quality Automatic Reflow Oven Machine ET-R6 CE Certificate Machine
Features of reflow oven
1. The components are subject to small thermal shocks, but sometimes give the device a large thermal stress.
2. Apply solder paste only to the required parts, which can control the amount of solder paste applied and avoid defects
such as bridging.
3. The surface tension of the molten solder can correct small deviations in the placement position of the components.
4. A local heating heat source can be used to weld on the same substrate using different welding processes.
5. Impurities are generally not mixed in the solder. When using solder paste, the solder composition can be properly
maintained.
Parameters of Reflow oven
| Model | ET-R6 | |
|
Heating System |
Number of heating zones | UP 6/BOTTOM6 |
| Number of cooling zones | 1 | |
| Length of heating zones | 2500MM | |
| Heating mode | hot air | |
| Cooling Mode | Force air | |
|
Conveyor System |
Max. Width of PCB | 350mm |
| Mesh belt width | 400mm | |
| Transmission Direction | L→R(or R→L) | |
| Transmission Net Height | 880±20mm | |
| Transmission type | Mesh and chain | |
| Range of rail width | 0-300mm | |
| Conveyor speed | 0-1500mm/min | |
| Auto/manual Lubrication | standard | |
| Upper hood method | Manual(option:auto) | |
| Fixed rail side | Front rail fixed(option: rear rail fixed) | |
| Components high | Top and bottom 25mm | |
|
Control system |
Power supply | 5line 3phase 380V 50/60Hz |
| Total power | 28kw | |
| Starting power | 28kw | |
| Normal power consumption | 4KW | |
| Warming time | About 20 mins | |
| Temp. setting range | Room temperature-300℃ | |
| Temp. control method | PLC & PC | |
| Temp. control precision | ±1℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Data storage | Process Data and status storage(80GB) | |
| Nozzle plate | Aluminum Alloy Plate | |
| Abnormal Alarm | Abnormal temperature. (extra-high/extra-low temp.) | |
| Board dropped alarm | Tower light: Yellow-warming, Green-normal, Red-abnormal | |
|
General |
Dimension(L*W*H) | 3600×1000×1490mm |
| Weight | 700KG | |
| Color | Computer gray | |
Company’s showcase
Shenzhen Eton Automation Equipment Co., Ltd located in 44th, Building, 5th.Cuigang Industrial Area, Fuyong, Baoan
District, Shenzhen, China. Eton company focus on building national brand and concentrate on providing customers
professional guidance, good quality machines, good sale services of automatic SMT machines.
Our goal is to provide customers with the best service possibly and to produce excellent quality products that will
meet or exceed your expectations.
Successful Experience:
Eta's customer in 20 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 500 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
For SMT factory setup,we can do for you:
1. We provide fulL SMT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT factory setup
5. We can solve any question about SMT
Our exhibition
Our services
1.Your inquiry about our products and price will be replied within 24 hours;
2. Well-trained and experienced staffs to answer all your enquires in fluent English;
3.Best products and price to offer;
4.Shortest time to delivery the products ;
5.Strict QC before shipping the products;
6.With 1 year warranty !
7.Good packing!
