Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Dimension: | L1600*W1120*H1200mm | Structure: | Pneumatic Clamp Structure |
| High Light: | smt pick and place equipment,high speed led mounting machine |
||

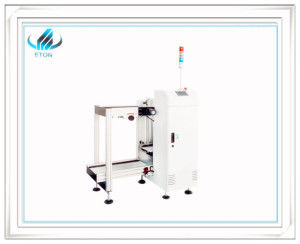

ET-L460 send board machine
The characteristics of product
The advantage of automatic plate loading machine is that there is no need for special equipment foundation, placed on the hardened flat ground can be used with the plate feeding machine, reduce the labor intensity of the operator, improve the working efficiency, save labor, reduce production cost;The whole machine has no moving cables and electrical components to ensure the personal safety of operators;The whole equipment has the characteristics of simple and reasonable structure, flexible operation, reliable performance and wide application range.
Features:
Controller Mitsubishi PLC programmable controller
Function Automatically send board
Operation control panel Display control true color touch screen
Pneumatic Components Push plate cylinder position, adjusted by screw
| Technical Parameter: | |
| Item | HLD-460 send board machine |
| Dimension | L1600*W1120*H1200mm |
| Frame | Special aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 120W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Structure | Pneumatic clamp structure |
| 0.6M long push plate Conveyor | 1 set |
| Turnover box specifications | (L)535*(W)530*(H)565mm |
| Maximum size of PCB | (L)525*(W)460mm |
| Direction | Right to left / left to right |
| Lift platform pitch selection | 10,20,30,40 |
| Transmission height | H=920±30 |
| Controller | Mitsubishi PLC programmable controller |
| Function | Automatically send board |
| Operation control panel | Display control true color touch screen |
Our Company
ShenZhen ETON Automation Equipment Co.,LTD.is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption”in the world,meanwhile ETON also the largest high-tech manufacturer in Chine with strong capability of design,R&D,manufacturing,sales&service,and rates as “Shenzhen high-tech enterprise”“China high-tech enterprise”“Shenzhen TOP Brand”“2015LED Technology Innovation Award”“The 4th China LED First Innovation Award”“Industry Special Contribution Award”“Double soft enterprise”etc.
Packing Method
Vacuum wooden package
Shipping Way
By air;
By sea, for large package and quantity;
Other ways as customer requested.
Delivery Time
15~30 Days
