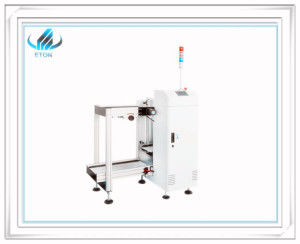

ET-L460 send board machine
SMT plate loader features:
Solid and stable sheet metal main frame design,
Effective cylinder push plate design can ensure that PCB board is not broken
Man-machine touch screen operation interface, highly simple man-machine dialogue, easy to operate
Panasonic PLC program control, multifunctional circuit and program design, stable performance, ensure smooth production line, give full play to good productivity
Humanized program design,5 Pitch choices, and Pitch spacing of PCB can be set
Capacity setting, can achieve planned production control (sound and light prompt)
Sound and light prompt alarm system, human-machine interface screen abnormal information prompt, maintenance more simple and convenient
| Technical Parameter: |
| Item |
HLD-460 send board machine |
| Dimension |
L1600*W1120*H1200mm |
| Frame |
Special aluminum profile guide rail and special thousand bird type plastic chain |
| Lift |
120W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Structure |
Pneumatic clamp structure |
| 0.6M long push plate Conveyor |
1 set |
| Turnover box specifications |
(L)535*(W)530*(H)565mm |
| Maximum size of PCB |
(L)525*(W)460mm |
| Direction |
Right to left / left to right |
| Lift platform pitch selection |
10,20,30,40 |
| Transmission height |
H=920±30 |
| Controller |
Mitsubishi PLC programmable controller |
| Function |
Automatically send board |
|
Operation control panel
|
Display control true color touch screen |
