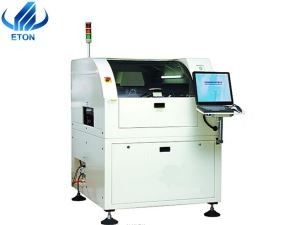

Full automatic printer ET-F1500
Solder paste printing machine
Modern solder paste printing machine is generally composed of plate setting, solder paste, embossing, circuit board and so on.Its working principle is: first the printed circuit board is fixed on the printing positioning table, and then the solder paste or red glue is misprinted on the corresponding welding pad through the steel mesh by the left and right scraper of the printing machine, and the misprinted PCB is input to the mounter through the transfer table for automatic mounter.
Machine specifications:
| |
Model |
ET-F1500 |
| Item |
|
| Screen Frames |
Min Size |
1100X300mm |
| Max Size |
1800X750mm |
| Thickness |
25~40mm |
| PCB Min Size |
80X50mm |
| PCB Max Size |
1500X350mm |
| PCB Thickness |
0.4~6mm |
| PCB Warpage |
＜1% |
| Transport Height |
900±40mm |
| Transport Direction |
Left-Right;Right-Left;Left-Left;Right-Right |
| Transport Speed |
Max 1500mm/S Programmable |
Board Location
PCB |
Support System |
Magnetic Pin/Up-down table adjusted/supportblock
by hand |
| Clamping System |
Elastic side clamp/Z press |
| |
|
| Squeegee Speed |
6~200mm/sec |
| Squeegee Pressure |
0~15Kg |
| Squeegee Angle |
60°/55°/45° |
| Squeegee Type |
Stainless steel(Standard), plastic |
| Stencil Separation Speed |
0.1~20mm/sec Programmable |
| Cleaning System |
Dry,Wet,Vacuum (Programmable) |
| Table Adjustment ranges |
X:±10mm;Y:±10mm;θ:±2° |
| Machine |
|
| Repeat Position Accuracy |
±0.015mm |
| Printing Accuracy |
±0.03mm |
| Cycle Time |
<12s (Exclude Printing & Cleaning) |
| Product Changeover |
<5Min |
| Air Required |
4.5~6Kg/cm2 |
| Power Input |
AC:220±10%,50/60HZ 1Φ 3KW |
| Control Method |
PC Control |
| Machine Dimensions |
2500(L)X1200(W)X1500(H)mm |
| Machine Weight |
Approx:1800Kg |
Working principle :
First the printed circuit board is fixed on the printing positioning table, and then the solder paste or red glue is misprinted on the corresponding welding pad through the steel mesh by the left and right scraper of the printing machine, and the misprinted PCB is input to the mounter through the transfer table for automatic mounter.
LED production line :
loader -- printing machine -- high speed pick and place machine -- conveyor-- reflow oven -- conveyor -- unloader
Advantages:
1, applicable to any material, compatible with a wide range of surfaces.
2, no plate making, printing fast and cheap, can be used in a variety of output software, support a variety of file formats.
3. Equipped with professional color management software, you can change colors anytime and anywhere without paying extra fees.
4. One-step completion, namely printing and taking, to meet the demand of quick sample and finished product.
5, unit price starting printing large quantities can be matched with template printing, save time and effort, full-color image, complete at one time, progressive color completely achieve photo quality effect, accurate positioning, rejection rate is zero.
7, only 30 minutes, you can master, make high-quality products, no need for professional skills.
8, computer operation, no personnel dependence, large space for upgrading.
