Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Condition: | 100% Original |
|---|---|---|---|
| Dimension: | 1650*1200*1570mm | X,Y ,Z Axis Driving: | High-end Magnetic Linear Motor + Servo Motor |
| High Light: | smt pick and place equipment,smt assembly machine |
||

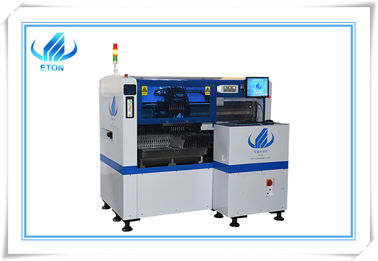

Single module magnetic linear motor multifunctional pick and place machine HT-E5S
Technical parameter:
| Dimension | Length | 1650MM |
| Width | 1200MM | |
| Height | 1570MM | |
| Total Weight | 1200KG | |
PCB |
PCB Size | Max:500*350mm Min:100*100mm |
| PCB Thickness | 0.5-3mm | |
| PCB Clamping | Electric clamping + Adjustable pressure pneumatic | |
| Mounting Mode | group picking and separate placing,separate picking and separate placing. | |
| Vision System | No. of Camera |
2 set of imported camera |
| Vision for the Flight Identification,Mark correction. | ||
| Mounting Precision | ±0.02mm Chip | |
| Mounting Height | <36MM | |
| Mounting Speed | 40000CPH | |
| Components:Max:36mm,Min:LED 0402 | LED,resistor,capacitors,shaped components,etc. | |
| Components Space | 0.2mm | |
| Feeding System | No. of Feeders | 30PCS |
| No. of Nozzles | Single Heads:8pcs Nozzles | |
| Feeder Style | Use Electric Feeders | |
| Non-stop refueling function | ||
| The automatic optimization function | ||
| X,Y ,Z Axis Driving | High-end magnetic linear motor + Servo Motor |
ShenZhen ETON Automation Equipment Co.,LTD.is a leading manufacturer of automatic high-speed pick and place machine.In 2016,HT-F7 The sixth generation high-speed pick and place machine which professional for LED display and strip.In 2016,HT-F7(ETON the 7th generation LED high-speed pick and place machine)HT-E9(ETON the generation 3st multi-function machine)was completed R&D and begin selling.
For SMT factory setup,we can do for you:
1. We provide full SMT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT factory setup
5. We can solve any question about SMT
FAQ
Are you a manufacturer or trading company?
A company integrated with R&D,manufacturing,sales&service.
What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
What is the maximum height of components that can be mounted on a machine?
The height of the mounting component can reach 36 mm, and the minimum mounting component can be 0402.
What is the length of the playable PCB?
Max:500*350mm min:100*100mm
Is this machine difficult to operate?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
Is your software interface in English?
English interface and Chinese interface are both aviable.
