SMT machine Single module magnetic linear motor multifunctional SMT mounter HT-E5S

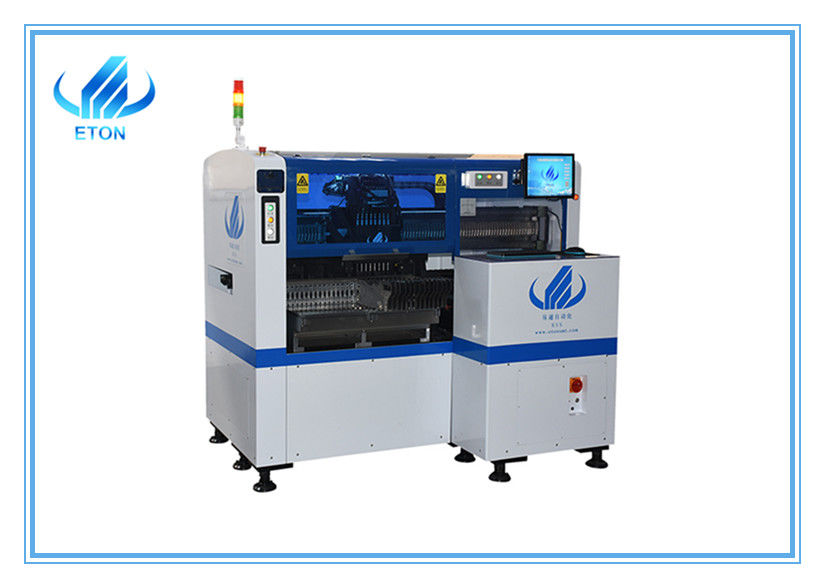

Large Image : SMT machine Single module magnetic linear motor multifunctional SMT mounter HT-E5S

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CE , ISO , CCC
Model Number:	ET-E5S
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 43000
Packaging Details:	Vacuum wooden packing
Delivery Time:	15-30 days
Payment Terms:	T/T
Supply Ability:	50 Unit per mouth

Contact Now

Detailed Product Description

Dimension:

1650*1200*1570mm

Weight:

1200KG

X,Y ,Z Axis Driving:

High-end Magnetic Linear Motor + Servo Motor

Condition:

100% Original

Highlight:

smt pick and place equipment

high speed led mounting machine

Single module magnetic linear motor multifunctional pick and place machine HT-E5S

Technical parameter:

Dimension	Length	1650MM
	Width	1200MM
	Height	1570MM
	Total Weight	1200KG
PCB	PCB Size	Max:500350mm Min:100100mm
	PCB Thickness	0.5-3mm
	PCB Clamping	Electric clamping + Adjustable pressure pneumatic
	Mounting Mode	group picking and separate placing,separate picking and separate placing.
Vision System	No. of Camera	2 set of imported camera
		Vision for the Flight Identification,Mark correction.
	Mounting Precision	±0.02mm Chip
	Mounting Height	<36MM
	Mounting Speed	40000CPH
	Components:Max:36mm,Min:LED 0402	LED,resistor,capacitors,shaped components,etc.
	Components Space	0.2mm
Feeding System	No. of Feeders	30PCS
	No. of Nozzles	Single Heads:8pcs Nozzles
	Feeder Style	Use Electric Feeders
		Non-stop refueling function
		The automatic optimization function
	X,Y ,Z Axis Driving	High-end magnetic linear motor + Servo Motor

Features:

1) Vision for the flight identification

2) Servo driven,8 Simultaneous pick-up head

3) Placement rates up to 40,000 CPH

4) Accurately place, manager, and track components with Smart Feeders

5) Accurately places a wide range of components including 0402, LED,0.2mm pitch QFP,SMT Connectors and many others

Transportation & Parking :

Our packing method is vacuum wooden case packing.

Supporting sea, air and land transportation.

Exhibition & Certification:

ETON advanced technology and innovation drives the revolution of market rapidly,we hold exhibitions at home and abroad every year ,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents,12 software copyrights,moreover.

Our service:

1. Quick response within 24 hours;
2. Offer free spare parts and service within one year of warranty .

3. Technology Support :We will send our engineer to your factory to install machine and training freely ; Provide Demo operation video for training show you the operation .
4. Good and professional after-sales service.
