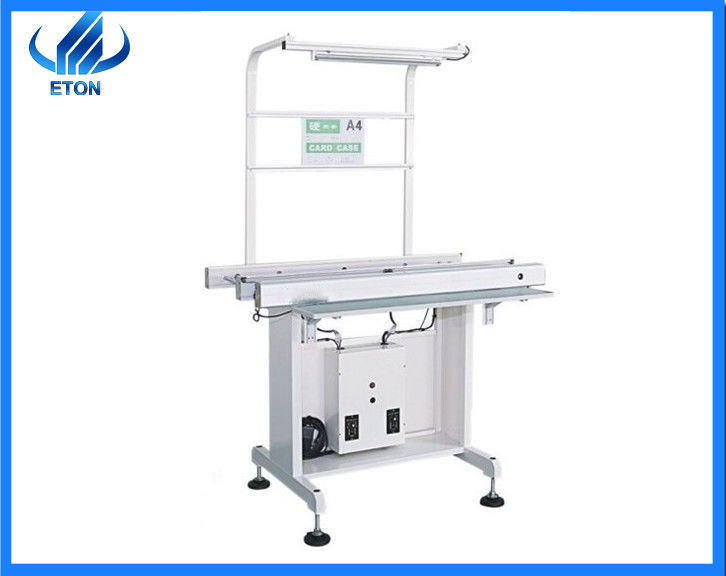

Full-automatic Smt Pcb Conveyor

0.5 M Conveyor ET-C500

Applicable:

Suitable for connection between SMT and AI production lines, can also be used for this easing, inspection, testing or manual insertion of electronic components. It is controlled by a programmable device (Siemens) and can be connected to any brand machine signal. The screw adjusts the width of the PCB to be convenient and accurate, and the body is particularly heavy and difficult to move.

Technical parameter:

ET-C500 steel frame structure ,rail length is 500 mm, the width adjustment range is 50-390 mm.

ET-C500 transmission height is 900-940 mm with 7 mm flat belt conveyor.

The speed can adjustable from 0.5 to 9 m/min

ET-C500 have set of stepper motor, one section of control and two sensors

ET-C500 using Industrial control panel, set of electric control box

Connection station features:

1.Using industrial microcomputer control, communication with automatic placement machine and automatic screen printing machine can be realized;

2. Set up an anti-static checkpoint;

3.Special SMT belt transmission, adjustable transmission speed;

4. Customers can customize products with special length and function. Basic parameters;

5.This product is suitable for connection between production lines such as SMT and AI, and can also be used for PCB buffering, testing, etc.

Firm packaging:

We use a combination of wooden case packaging and vacuum film wrapping, and we pack it with a rope and a stand.

Exported:

We have exported more than 20 countries, such as USA, Korea, India, Germany, Eygpt, Turkey, Vienam, Tunisia, etc.

Patent:

Our company obtains a number of intellectual property technologies, including 9 invention patents,12 software copyright

Coorperation:

Our company sells many types of smt machine, please contact us if you are interested.
