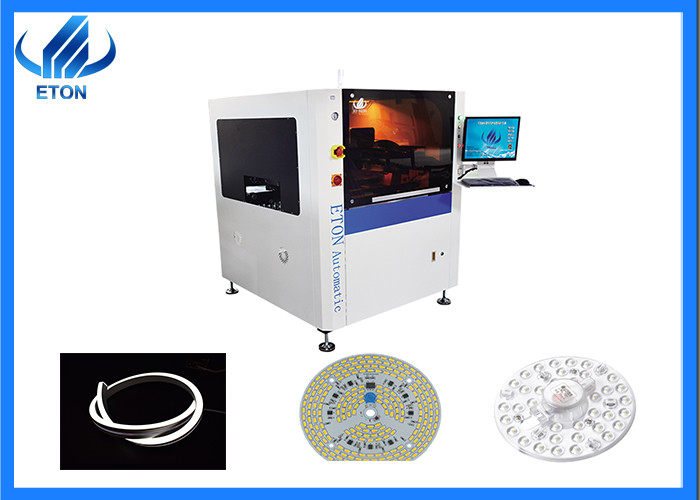

Hot Selling LED Automatic Printer Machine ET-F400 SMT Pick and Place Machine

Hot Selling LED Automatic Printer Machine ET-F400 SMT Pick and Place Machine

The davantages of automatic printer machine

1, the adjustment mechanism of the advanced timing belt (adjustable adjustment / high printing speed stability)

2, a variety of positioning methods (different PCBs and devices)

3, the powerful extension of the human-machine interface: (utility and personality balance);

4, the touch screen protective cover: (protection);

5. The scraper holder removal mechanism: (safety/precision);

The parameters of automatic printer machine

	Model	ET-F400
Item
Screen Frames	Min Size	370X370mm
	Max Size	737X737mm
	Thickness	25~40mm
PCB Min Size		50X50mm
PCB Max Size		400X340mm
PCB Thickness		0.4~6mm
PCB Warpage		＜1%
Transport Height		900±40mm
Transport Direction		Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed		Max 1500mm/S Programmable
Board Location P	Support System	Magnetic Pin/Up-down table adjusted/supportblock by hand
	Clamping System	side clamping,vacuum nozzle
Print head		Two independent motorised printheads
Squeegee Speed		6~200mm/sec
Squeegee Pressure		0~15Kg
Squeegee Angle		60°/55°/45°
Squeegee Type		Stainless steel(Standard), plastic
Stencil Separation Speed		0.1~20mm/sec Programmable
Cleaning System		Dry,Wet,Vacuum (Programmable)
Table Adjustment ranges		X:±10mm;Y:±10mm;θ:±2°
Machine
Repeat Position Accuracy		±0.01mm
Printing Accuracy		±0.025mm
Cycle Time		<7s (Exclude Printing & Cleaning)
Product Changeover		<5Min
Air Required		4.5~6Kg/cm2
Power Input		AC:220±10%,50/60HZ 1Φ 3KW
Control Method		PC Control
Machine Dimensions		1220(L)X1355(W)X1500(H)mm
Machine Weight		Approx:1000Kg

FAQ

1.Is your software interface in English?

English interface and chinese interface are both available.

2.Which counties have your machine exported?

Our machine have expored more than 20 countries, such as India, Egypt, Korea, Turkey, Brazil, Vietnam, and so on.

3.Who is your client?

Such as FSL, ETI, KONKA, OPPLE, MLS are our client. In India, such as RK,Surya, skyquad are our client.
