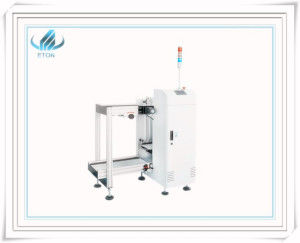

ET-L330 send board machine
Product description of loading machine
Automatic loading machine for SMT and AI production line
Product features:
1. 4 upper and lower cylinder clamping frame is adopted, which is stable and reliable, and the plate receiving is accurate;
2. Hand-type push-rod cylinder width adjustment system, convenient and quick;
3 built-in fault retrieval function and safety detection system, sound and light alarm when abnormal;
4 PLC central control system, stable performance;
5 lifting system adopts imported ball screw and carbon steel column, with low noise, low vibration and accurate positioning;
With SMEMA communication interface, it can connect with other automation devices
Features
1, microcomputer control, stable and reliable work;
2, button or touch screen two kinds of control panel can be selected, man-machine dialogue is convenient;
3. Multiple sound and light alarm functions;
4, can use standard material box, strong versatility, can place three material rack;
5. The lifting step of the material frame can be set according to the thickness of PCB, and the step can be divided into four types (10,20,30,40mm).
6. With automatic counting function, convenient for production statistics;Equipped with signal communication structure, can be connected with other machines online
| Technical Parameter: |
| Item |
HLD-330 send board machine |
| Dimension |
L1400*W860*H1200±30mm |
| Frame |
Special aluminum profile guide rail and special thousand bird type plastic chain |
| Lift |
90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Magazine Specifications |
L460*W400*565mm |
| Maximum size of PCB |
L450*W330 |
| Direction |
Right to left / left to right |
| Lift platform pitch selection |
10,20,30,40 |
| Transmission height |
H=920±30 |
| Function |
Automatically send board |
| Pneumatic Components |
Push plate cylinder position, adjusted by screw |
| power supply |
220V 50HZ |
| No. of Full load storage board |
50 PCS |
| Gas source |
0.4-0.6MPa |
| Electric control box |
1 set |
Company profile
ShenZhen ETON Automation Equipment Co.,LTD. Main research and development to be produce sale in integral whole automation equipment manufacturers, the main products: SMT solder paste printer, solder paste mixer, SMT feeder, automatic machine, fully automatic machine, automatic suction machine, fully automatic dual track plate, seal parallel transfer machine, high-speed placement machine, can be targeted research and development with SMT production of various kinds of main equipment of non-standard customized production, make production line more intelligent, humane, high-quality, high rty modern intelligent production.To save manpower and improve production efficiency. Your trust is our biggest power.
Core Competencies
Over the years, we have developed core competencies that warrant us to be the global leader in the industry: Customization , Short lead time , Flexibility , Customer Satisfaction , Premium Quality Products , Value For Money , International Distribution Network , Extensive Service Support
Our Services
1. offer detail manual user .
2. customer to our factory study and training .
3. offer overseas service : can send engineers
to customer factory for installAutomatic loading machine
