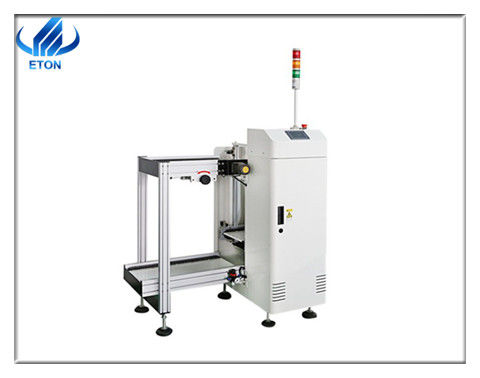

ET-L330 send board machine
The characteristics of product
The advantage of automatic plate loading machine is that there is no need for special equipment foundation, placed on the hardened flat ground can be used with the plate feeding machine, reduce the labor intensity of the operator, improve the working efficiency, save labor, reduce production cost;The whole machine has no moving cables and electrical components to ensure the personal safety of operators;The whole equipment has the characteristics of simple and reasonable structure, flexible operation, reliable performance and wide application range.
Features
1, microcomputer control, stable and reliable work;
2, button or touch screen two kinds of control panel can be selected, man-machine dialogue is convenient;
3. Multiple sound and light alarm functions;
4, can use standard material box, strong versatility, can place three material rack;
5. The lifting step of the material frame can be set according to the thickness of PCB, and the step can be divided into four types (10,20,30,40mm).
6, feeding machine built-in push plate mechanism, avoid the need to buy a separate push plate machine;
7. With automatic counting function, convenient for production statistics;Equipped with signal communication structure, can be connected with other machines online
| Technical Parameter: |
| Item |
HLD-330 send board machine |
| Dimension |
L1400*W860*H1200±30mm |
| Frame |
Special aluminum profile guide rail and special thousand bird type plastic chain |
| Lift |
90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Transmission motor |
Taiwan 15W fixed speed motor |
| Structure |
Pneumatic clamp structure |
| Magazine Specifications |
L460*W400*565mm |
| Maximum size of PCB |
L450*W330 |
| Direction |
Right to left / left to right |
| Lift platform pitch selection |
10,20,30,40 |
| Transmission height |
H=920±30 |
| Controller |
Mitsubishi PLC programmable controller |
| Function |
Automatically send board |
| Operation control panel |
Display control true color touch screen |
| Pneumatic Components |
Push plate cylinder position, adjusted by screw |
| power supply |
220V 50HZ |
| No. of Full load storage board |
50 PCS |
| Gas source |
0.4-0.6MPa |
| Electric control box |
1 set |
