Product Details:
Payment & Shipping Terms:
|
| Name: | Loader Machine/sent Board Machine | Brand: | ETON |
|---|---|---|---|
| Apply: | Smt Line | Max Pcb Size: | 250*330 Mm |
| Lift Platform Pitch Selection: | 10，20，30，40 | Transmission Height: | H=920±30 |
| High Light: | high speed led mounting machine,smt assembly machine |
||

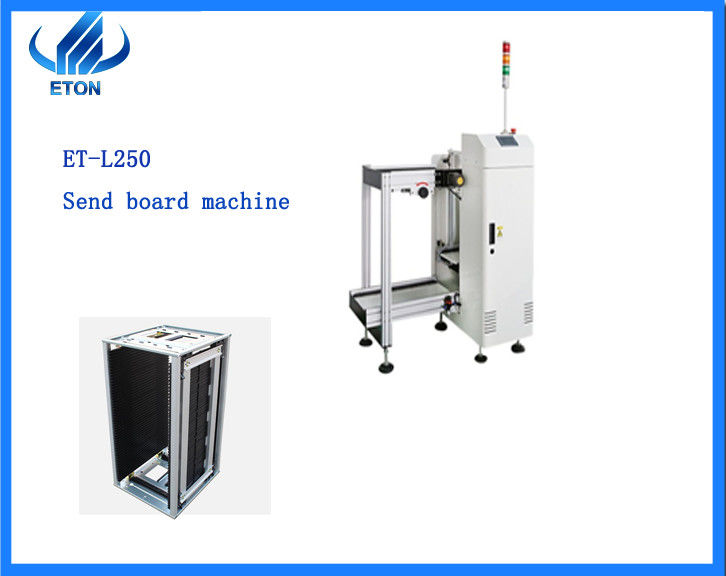

ET-L250 send board machine
We are the manufacture of smt machine, our main product is mounter machine, also provide loader, unloder, reflow oven , solder printer, etc. We can provide a production line of led smt machine.
We have very rich export experience , so far, we have exported more than 20 countries, such as India, Egypt, Turky, Thailand, Vietnam,Korea, and so on.
We are hightech enterprise, with ccc, sira, ce, 9 invention patents, ans so on.
Application:
Loader machines are used to load the PCBs for the next stage of assembly, where it moves to the printer. Loader machines ensure that the PCBs are loaded without any misalignment, and a regular check is maintained when it comes to orientation and contamination, thus ensuring high productivity and yields.
ET-L250 send board machine is apply to smt production line, it can send board fully automatic. Also it is very suitable for automatic smt production line, achieve unmanned production.
Parameter:
| Item | ET-L250 send board machine |
| Structure | Pneumatic clamp structure |
| Magazine Specifications | L355*W320*565mm |
| Maximum size of PCB | L330*W250 |
| Direction | Right to left / left to right |
| Lift platform pitch selection | 10,20,30,40 |
| Transmission height | H=920±30 |
| Controller | Mitsubishi PLC programmable controller |
| Function | Automatically send board |
| Pneumatic Components | Push plate cylinder position, adjusted by screw |
| power supply | 220V 50HZ |
| No. of Full load storage board | 50 PCS |
| Gas source | 0.4-0.6MPa |
| Electric control box | 1 set |
Details:
1..Lift: 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
2.Frame: Special aluminum profile guide rail and special thousand bird type plastic chain
3. Operation control panel:Display control true color touch screen
4.Transmission motor: Taiwan 15W fixed speed motor
