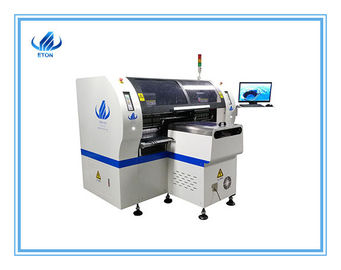

Single module magnetic linear motor multifunctional pick and place machine HT-E5S
Technical parameter:
| Number of Heads |
8 |
| Alignment |
Vision for the flight identification
|
| Drive Motor |
High-end magnetic linear motor + Servo Motor |
| Max Placement Rate |
40000CPH |
| Max Tape Feeder Capacity |
30 |
| power/power consumption |
380AC,50Hz/ 4kw |
| Mounting Precision |
±0.02mm ,Vision alignment,
Mark vision
|
| PCB Length Width |
Max:500*350mm Min:100*100mm |
| Air pressure |
>5Kg per cm |
| Component Range |
Smallest Size 0402 |
| |
Max Height 36mm |
Application:
Company Introduction:
Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Eton mission: professional, excellent technology, sharing the results.
Eton goal: to create a national brand, build international Chinese enterprise.
Eton purpose: to create value for customers, creating benefits for society.
Client & Transportation & Parking :
ETON got large market share in USA , KOREA , INDIA , GERMANY , EGYPT , TURKEY , VIETNAM , TUNISIA , THAILAND more than 20 countries.
Our packing method is vacuum wooden case packing.
Supporting sea, air and land transportation.
Attention:
1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;
2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.
3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;
4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.
Exclusive patented technology:
1. Electronic feeder feeding system
2. Vision alignment flight identification,Mark correction
3. Non-stop material re-loading function
4. Auto-optimization after coordinates generated,etc
Our service:
1. Quick response within 24 hours;
2. Offer free spare parts and service within one year of warranty .
3. Technology Support :We will send our engineer to your factory to install machine and training freely ; Provide Demo operation video for training show you the operation .
4. Good and professional after-sales service.
