Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Dimension: | 2550*1650*1550mm |
|---|---|---|---|
| System: | Windows7 | Software: | R&D Independently |
| Warranty: | 1 Year | Total Weight: | 1250kg |
| Speed: | 40000CPH | Nozzles: | 8PCS |
| Feeders: | 30 PCS | ||
| High Light: | smt pick and place equipment,high speed led mounting machine |
||

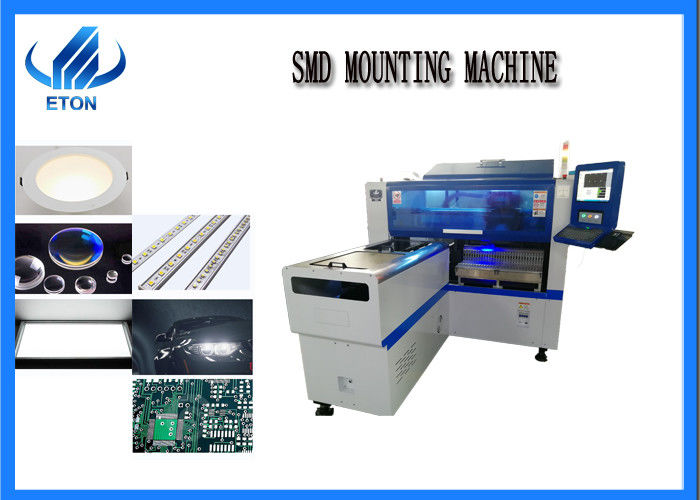

HT-E8S automatic multi-functional led bulb making machine
With the rapid development of the LED industry, the automation equipment products, quality requirements are higher, ETON automation launched HT-E8S automatic multi-functional pick and place machine, HT-E8S imported from Japan precision screw + linear guide rail + servo motor+linear motor, equipped with MARK point positioning vision + device recognition function. The pursuit of high-speed completion of the mounting, while fully ensuring the stability of high-speed operation of the equipment, is a cost-effective LED multi-functional placement machine.
Product details
1. Precision mounting head system
The mounting method of 8 nozzle heads, group picking and separate placing / separate picking and separate placing can meet the mounting requirements of different components.
Each nozzle head is independently controlled by an independent servo motor to reduce feeding and ensure mounting accuracy at a higher speed than the stepper motor.
2. High precision imported screw
The X and Y axis adopts high-end magnetic linear motor to control the screw, and the Z axis adopts panasonic servo motor to control and drive, with ultra-high acceleration performance and stable movement speed to ensure the accuracy and stability of each step of mounting.
| Exclusive Patented Technology | performance |
| Electronic feeder feeding system | The feeding way is electric feeder with double motor,keep the machine running at high speed. |
| Vision alignment flight identification,mark correction | 2 sets of imported camera,vision mark ,Visual Mark, Automatic Search for Mark Points.keep high precision. |
| Non-stop material re-loading function | Maximize Time Saving and Improve Production Efficiency. |
| auto-optimization after coordinates generated ,etc | Improve accuracy and avoid defective products. |
Application
amps and lanterns: fluorescent lamp, bulb lamp, ceiling light, panel light, cast light lamp, mining lamp, down light, etc
Lighting: soft light tube, hard tube, advertising module, etc
Pasting class: LED watch pasting
Logistics and delivery
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Company information
Shenzhen Eton Automation Equipment co., LTD. is a professional manufacturer of pick and place machine. Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine. And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation.
lwe will send our engineer to your factory to install machine and training freely.
lWe have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
lStandard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
